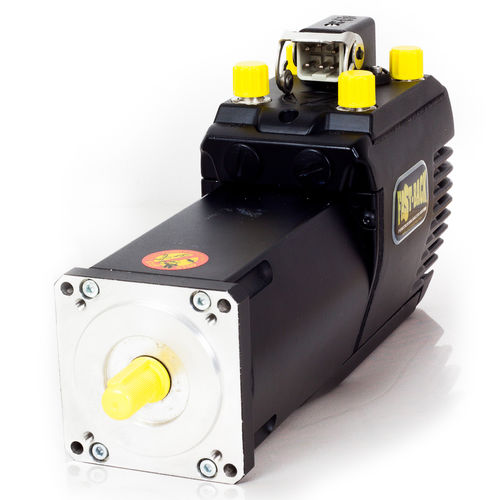

Integrated-drive servomotor Fast Back (FBK)

Integrated-drive servomotor Fast Back (FBK)

Integrated-drive servomotor Fast Back (FBK)

About


Brushless integrated servomotor with built-in servodrice, torques from 1.1 to 7.5 Nm and 220Vac single or three phase power supply.
Quick and easy cabling, installation and configuration, maintaining the Axor’s typical high performance and design.
220Vac supply and on request 300Vdc
Powered directly from the mains
Built-in EMC filter and in-rush circuit
Built-in braking circuit & resistor
2 digital inputs – 1 digital output
SpeederOne interface software
RS232 Port for PC
RS232 to CANopen multidrop
Special connector orientation on request
Different flanges & shafts on request
Holding brake & management
Protection rating IP54 & IP65
CONTROL MODES
CANopen daisy chain loop
Modbus-RTU
Digital positioning



PARAMETERS

Parameter Name Parameter Value
AC/DC
  • three-phase
  • single-phase
Type
brushless
Voltage (V)
220 - 220
Protection class
  • EMC
  • IP54
  • IP65
Other characteristics
  • CANopen
  • RS-232
  • integrated-drive
  • performance
Torque (Nm)
1.1 - 7.5
Rotational speed (rpm)
2200 - 2200
