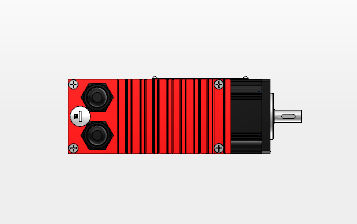

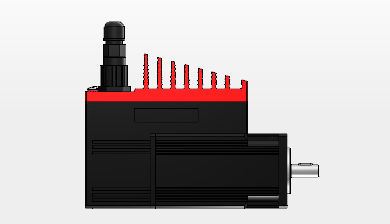

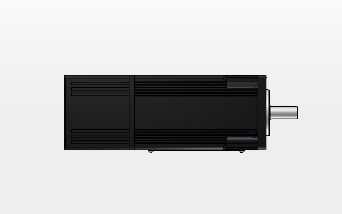

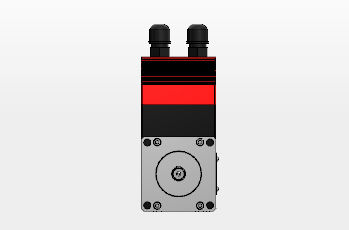

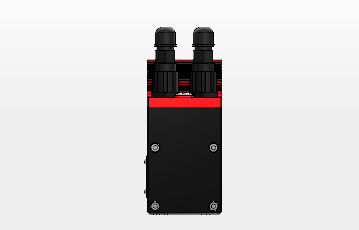

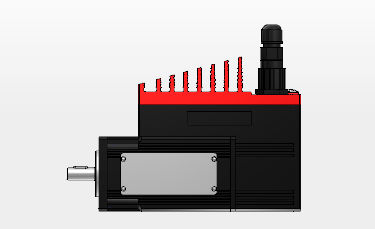

BRUSHLESS SERVOMOTOR WITH INTEGRATED DRIVE.
EN: Brushless servomotors with integrated drive. Power from 125 to 250 W
MOTOR: Brushless 4-pole three-phase sinusoidal motor, totally enclosed. Rotor with NdFeB magnets. Thermal cutoff. Winding Class F. Thermal cutoff. Protection IP65 in compliance with IEC/EN 60529 standards. Bearings with reduced backlash and special grease for high temperatures.
Rated torque up to 0.75 Nm.
DRIVE: Power 24 and/or 48 Vdc • Magnetic absolute encoder SSI (12bit single-turn / 16bit multi-turn) with internal buffer battery• 5 PNP digital inputs and 1 analogue input -10 +10V ext. (0-5 or 4-20mA optional) • 1 relay output (NC-NO) • USB port for parametrisation • Torque, speed, position and homing control.
All the models are implemented with the new “open” platform, which permits configuration with the following primary protocols: CanOpen, Ethercat, Modbus, Ethernet/IP, Profinet, Powerlink.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
|
| Type |
brushless
|
| Voltage (V) |
24 - 48
|
| Protection class |
IP65
|
| Configuration |
permanent magnet
|
| Number of poles |
4-pole
|
| Other characteristics |
|
| Power (W) |
125 - 250
|
| Intensity (A) |
6.3 - 8
|
| Torque (Nm) |
0.75 - 0.75
|
| Rotational speed (rpm) |
3000 - 3000
|
