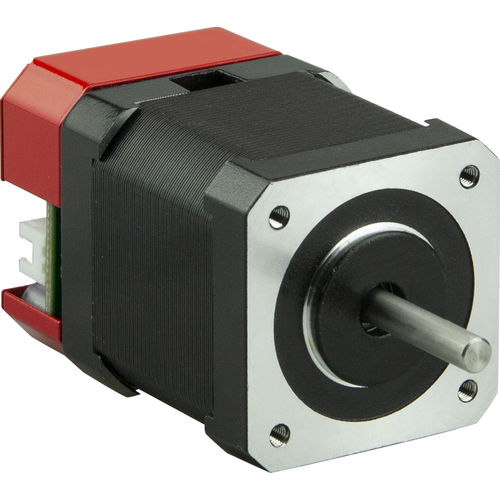

Integrated-drive motor SMD-1.6mini ver.2

Integrated-drive motor SMD-1.6mini ver.2

Integrated-drive motor SMD-1.6mini ver.2

About


The integrated control units of the SMD ‑ mini series of the second version are designed for use with two-phase hybrid stepper motors, which, when used together with the units, form non-programmable stepper drives of compact dimensions.

The SMD-mini blocks of the second version are the drivers supplying the motors in accordance with the external digital signals supplied to the control inputs.

The drivers provide the required speed and direction of rotation of the motor, as well as accurate positioning of the shaft by processing logical signals: PITCH (pulse), DIRECTION (level) and RESOLUTION (level). As a source of logic signals, frequency generators, PLCs, computers with an LPT port, etc. can be used.

The features of the drivers are microstepping mode up to 1/256 and software setting of the main parameters. It is recommended to use a UART-USB converter to connect drivers to a computer.

SMD‑1.6mini ver.2 drivers are supplied complete with motors SM4247.

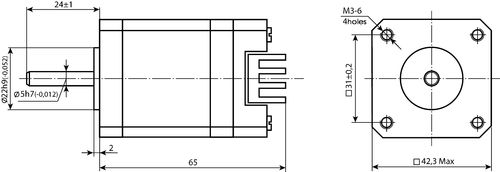

The main parameters of stepper motor SM4247 with integrated driver SMD­­‑1.6mini ver.2
Power supply - 12 ‑ 24 VDC
Microstepping mode - 1/1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
Maximum holding torque: 4.4 kgf*cm
Phase resistance: 1.65 Ohm
Phase inductance: 2.8 mH
Motor rotor inertia: 68 g*cm2



PARAMETERS

Parameter Name Parameter Value
AC/DC
two-phase
Type
hybrid stepper
Voltage (V)
24 - 12
Configuration
  • NEMA 17
  • compact
Other characteristics
  • with integrated controller
  • integrated-drive
Torque (Nm)
0.4315 - 0.4315
