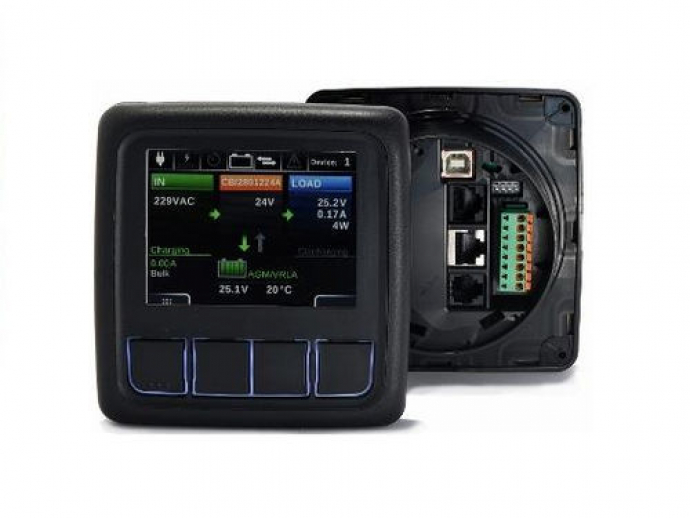

DPY351 is a robust and versatile multifunction display. It allows monitoring, configuring, and managing ADELSystem devices connected to an ADELBus network.

The DPY351 allows to remote monitoring the battery condition, receive alarms and configure the units.

High-brightness and wide viewing-angle 3.5’’ TFT screen. Optimum visibility in any operating condition.
Intuitive Human-Machine Interface (HMI)
The Ethernet interface inside allows configuring and managing ADELBus devices connected - SNMP and Modbus TCP protocols.
It is possible to connect several devices in a chain together, up to 30.

Monitoring

It is possible to monitor the input and output data, peak current, peak voltage, and all the battery parameters such as temperature, State of Charge internal Impendency - 3.5’’ TFT

Configuration

With the DPY351, it is possible to modify the parameters of any ADELsystem device connected: DC Ups, Power Supply, and Battery Charger - HMI

Alarms management

All the alarms present on the single device are immediately reported.

History

The history parameters are recorded inside each device. The DPY351 allows for inspecting all the historical parameters of every single device.

Logging

The device memorizes and displays the last 20 actions done.

Web Server

It is possible to configure and drive the device by one Own Server

Event

Actions that are coordinated among the devices connected can be programmed, thus automating the system.

Parameter Name	Parameter Value
Type	color LCD/TFT
Format	compact, high-resolution, 320 x 240
Applications	industrial instrumentation current measurement HMI
Other characteristics	LED-backlit electronic high-brightness RS485 wide-viewing angle Ethernet smart outdoor waterproof panel-mount Modbus RTU IP65
Width (mm)	111.4 - 111.4
Height	116.8 mm (4.5984 in)
