Helping deliver an efficient and secure process

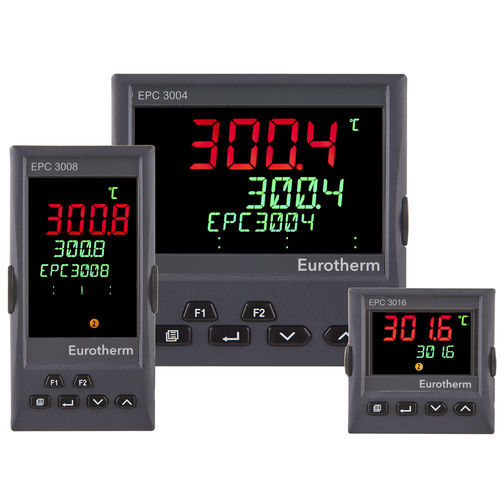

The EPC3000 range of programmable single loop process and temperature controllers maximizes efficiency and repeatability and is certified for cybersecurity communications robustness.

Now available with Factory Mutual (FM) approved temperature limit option.

EPC3000 programmable controller is the recommended upgrade or replacement for Eurotherm 2200 and 2400 Temperature Controller / Programmer.

Description
Accuracy and Repeatability

Process inputs are fast and accurate, with exceptional thermal stability, aiding precise and consistent control over long periods without calibration drift. Recalibration and user calibration correction functions are available to further improve accuracy.

The industry-leading Eurotherm PID algorithm delivers fast reacting and repeatable control and has been enhanced in the EPC3000 range to further reduce overshoot. Rapid rise to operating temperature and low oscillation helps improve yield. PID settings may be adjusted to suit specific process operating regions, helping deliver optimum performance.

Connectivity and Cybersecurity

The EPC3000 controller range is Ethernet enabled as standard and is the first Eurotherm controller to be designed and certified to meet the stringent cybersecurity requirements of Achilles® Communications Robustness Testing Level 1. Ethernet communications are supported via a standard RJ45 connector, providing fast access to process and diagnostic information as well as connectivity to external PLCs, SCADA systems and IIoT technologies.

Modbus RTU serial communication is also supported.

Parameter Name	Parameter Value
Input/output	inputs
Network	Modbus RTU Ethernet
