For servo motors as a needle drive on multi-drop sliding mechanism type ANES

Needles controllable
2 to 16
Interface
48-pin industrial connector

Operating voltage
230 VAC

Volt Alternating Current - Wechselstrom
Dimensions (W × H × D)
370 × 640 × 410 mm

Weight
30.0 kg

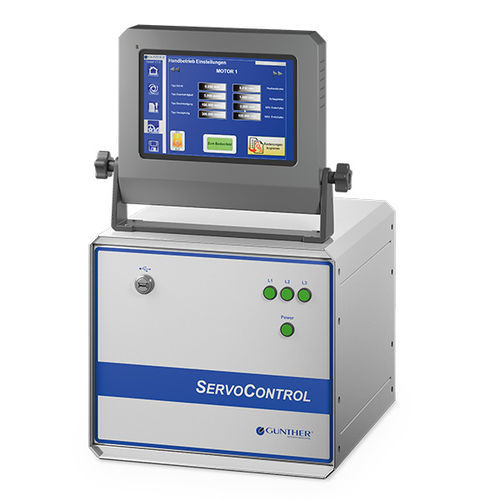

Three user levels protect the ServoControl from faulty operation while allowing the adjustment of all parameters to suit your application. The ServoControl communicates with your injection moulding machine over freely programmable inputs and outputs.

Data and settings are backed up over the integrated USB interface
Data records can be transferred between multiple ServoControl units
User management with various different authorisation levels
All movement and position data are easy and convenient to set with the user-friendly touchscreen
32 A CEE mains connection.

Depending on the version, up to three motors can be operated individually or synchronously

Servo motors of different performance classes are available for driving the sliding mechanism (ANES)
The sliding mechanism enables the tightest of cavity spacings and simultaneous closing of the cavities

Parameter Name	Parameter Value
Applications	injection
Other characteristics	programmable
