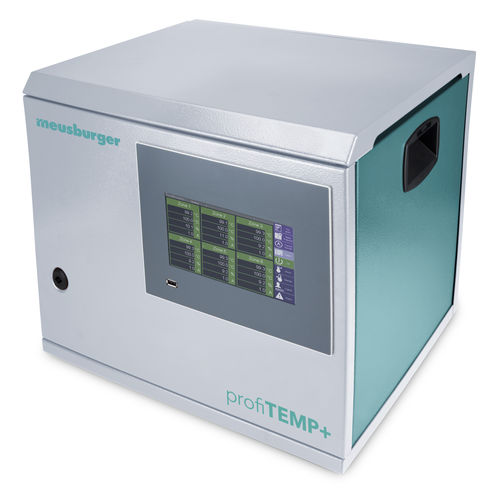

The profiTEMP+ VCON controls the valve pins during cascade injection and can be combined in one housing with temperature control. The touch screen operation shows the processes, displays the individual sealing phases and allows the data to be read out via USB for documentation.

Whether you control the cascading of the valve gate nozzles conventionally, opt for the high-end solution with varioFILL advanced or decide on a combination of the two, the profiTEMP+ VCON is the perfect solution.

Number of channels - 4-32
valve gate nozzles / proportional valves - Expandable in groups of 4 (depending on housing and expansion variant)
Display - 7 inch TFT
Operation - Capacitive touch-screen
Mains voltage - 230 VAC, 8 A
Mains connection - Schuko safety plug, 16 A; connection cable 2.5 m
Control fuse - 6.3A MT
Alarm output - 1 (optional 2) / via CUI07
Potential free relay contact 250 VAC / 1 A
Dimensions - 4/8/12/16 channels: (HxWxD in mm)
20/24/28/32 channels: (HxWxD in mm)
Electrical safety - EN61010-1
EMV - EN 61326-1:2013, industrial requirements
Over-voltage category - II
Ingress protection - I
Storage media - USB

POWER OUTPUTS
Function - Switchable solenoid valve / proportional valve
Switching capacity per outlet with solenoid valve control - Max. 1.5 A / 24 VDC
Switching capacity per outlet with proportional valve control - 0...1000 mA / 24 VDC (electricity controlled via PWM with 160 Hz)
Fuse - Fuse 2 A, FF

Parameter Name	Parameter Value
Applications	temperature injection
