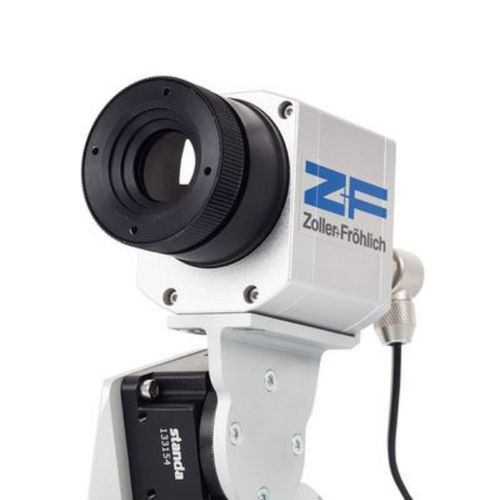

The infrared camera Z+F T-Cam is an external solution to document rooms and objects not only three-dimensionally but also thermally. The camera generates 360° thermal panoramas with a resolution of 382x288 pixels. The infrared information is automatically being mapped onto the point cloud. The infrared spectral range is from 7.5 - 13 μm. By using the Z+F T-Cam, many new opportunities arise in the fields of insurance, facility management, industry and forensics. The T-Cam is easy to mount and is connected to the scanner via USB.

Camera
Resolution: 382 x 288 pixel
Infrared spectrum: 7.5 - 13 μm
Working temperature: 0°C - 50°C (32°F - 122°F)
Storage temperature: - 20°C - 60°C (-4°F - 140°F)
Relative humidity: 20% - 80%, noncondensing

Lens
Field of View 62° x 49°

Temperature ranges
Default setting: -20°C to 100°C (-4°F to 212°F), 0°C to 250°C (32°F to 482°F), 150°C to 900°C (302°F to 1652°F)

Temperature accuracies
Temperature resolution: 4096 increments (12 Bit)
Noise Equivalent Temperature Difference (NETD): 0.08 K
System accuracy / absolute temperature accuracy: 1 +/- 2°C

Parameter Name	Parameter Value
Applications	industrial for scientific applications
Technology	3D
Function	spark optical emission thermal
Spectrum	infrared
Interface	USB
Other characteristics	360° swivel
