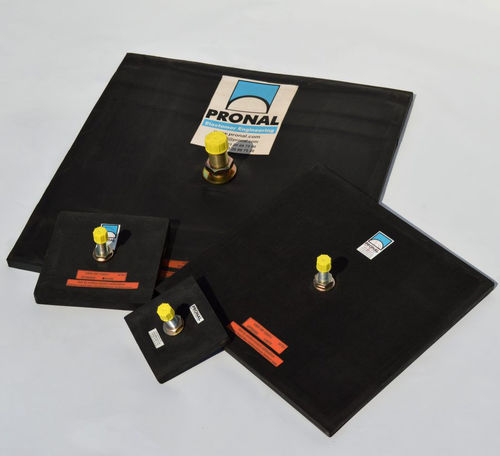

Square lifting bags or soft inflatable bladders, are compressed air systems comprising a square shaped rubber membrane. Filled with air, water or oil, these true inflatable seals are generally mounted in automated industrial systems to push, press, guide, clamp, block, damp, lift and handle.

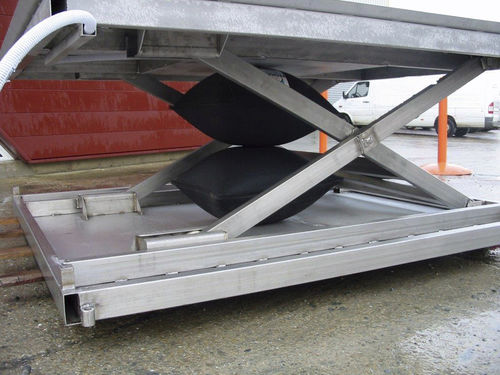

Once deflated, the penumatic jacks return to their initial shape. These thin bellows jacks easily fit into presses, moulds, conveyors, handling robots or lifting tables. They are ideal for short travel applications and for high force levels with uniformly distributed thrust. They require practically no maintenance.

Just like flange jacks, they are available in double and triple bellows versions.
APPLICATIONS
Clamp an injection press cover
Clamping vice

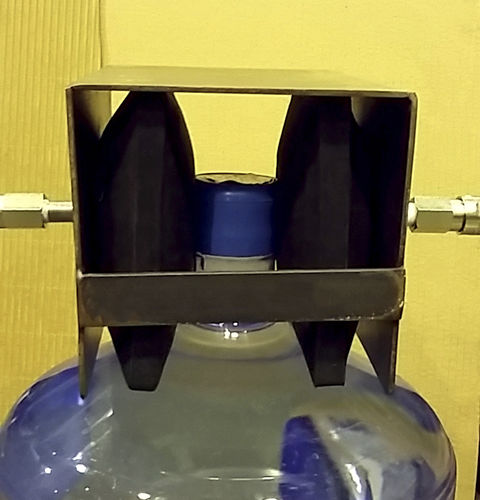

Clamp mould for prehension
Damp the load weight
Previous
Next
ADVANTAGES
Handy to use
•Requires a single air inlet
•Fast inflation
•Adapts to complex geometric shapes
Efficiency
•Thin when deflated
•Uniformly distributed force
•Small dimensions
Handling
•No mechanical parts
•No maintenance
•Long service life
DETAILED INFORMATION
•Material: A variety of elastomer coated fabrics (NPVC )
•Manufacturing technique: Hot vulcanisation in a vacuum autoclave
•Flat standard dimensions: from 100 x 100 mm to 1000 x 1000 mm
•Custom dimensions: contact us
•Thickness at rest: 20 mm max. for one stage, 40 mm for two stages and 60 mm for three stages
•Shape: square
•Inflation: air, water or oil
•Temperature resistance: up to 80°C continuous
•Max. inflation pressure: 7 bar or more depending on conditions of use
•Lifting travel: depending on jack dimensions

Parameter Name	Parameter Value
