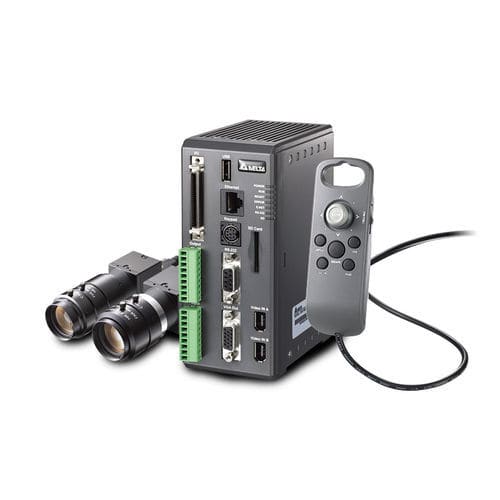

The Delta Machine Vision System DMV1000 Series is a user-friendly interface for image processing. It captures images via the IEEE 1394 digital camera with 400Mbps high-speed transmission capacity. The built-in high-speed image processing system then simulates inspection functions including area detection, edge position, distance, counting, angle, stain, blob, comparing, OCV, coordination and edge angle, meeting the requirements for a variety of visual inspection applications.

The DMV1000 Series features smart image processing and also supports various I/O input and output interfaces for connecting external sensors, triggering light sources, cameras, data links and more, to reduce hardware installation costs. The DMV1000 Series supports the most frequently-used industrial communication protocols, including RS-232, RS-485, industrial Ethernet and I/O communication interfaces to transmit inspection data and results quickly and precisely to the master controller. The DMV1000 series also includes accessories including cameras, lenses, light sources and more, enabling users to construct highly-precise, flexible, network-based machine vision systems.

Specifications

Interface: Provides a 9-pin input terminal, a 9-pin output terminal and a 50-pin I/O mixed terminal.
Ethernet: Connects a PC or PLC via Ethernet for data/images transmission and set up.
Keypad: Sets up and controls compatibility with DMV system
SD memory card: Stores DMV set up process, parameters, inspection results and images taken.
RS-232: Speedily connects to Delta controllers or controllers of other brands without the need for other programming languages.
Camera: Expandable to two 1394a cameras.

Parameter Name	Parameter Value
Applications	industrial
Options	ultra high-speed
