It regenerates the incoming electrical signal on a bus line and retransmits it (bit reshaping and retransmission).
The signals are restored in level, slope, and duty cycle.
The FLEXtra® twinRepeater supports data rates of 9.6 kbps to 12 Mbps and recognizes them automatically.

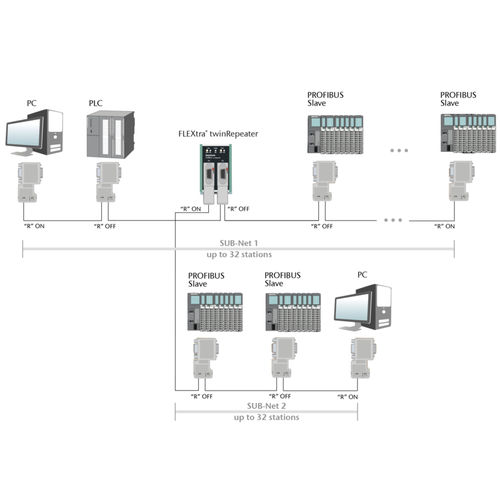

It can be used for bus extension (up to 1 km with 2 FLEXtra® twinRepeaters), to increase the number of participants, and to expand the system. At the same time, use in MPI networks is possible. As a special application option, the FLEXtra® twinRepeater allows the setup of stubs as separate segments.
The status LEDs integrated for each segment provide a quick overview of the current bus status. Furthermore, the FLEXtra® twinRepeater provides electrical isolation between the two PROFIBUS segments.
In addition, it has a switch to turn off the repeating function. The segments are separated but continue to function for themselves.
PROFIBUS connectors are required for connection to the PROFIBUS cable.

Can be used for bus extension or as a spur line
Increase the number of participants
System expansion
Can also be used in MPI networks
Status LEDs for each segment
Repeating function can be switched off
Electrical isolation

Parameter Name	Parameter Value
Options	industrial network communication RS-485 PROFIBUS communication system
