Leading-edge diagnostic tools for DeviceNet industrial networks use high-speed data sampling to predict system faults for avoiding plant automation down times

Molex diagnostic tools minimize system downtime resulting from network failure and help anticipate potential problems with live network validation and troubleshooting. Quickly identify problems relating to network power, data errors and excessive bandwidth consumption and isolate and diagnose the fault source. Molex diagnostic tools also help certify new DeviceNet industrial network installations and speed DeviceNet maintenance and repairs. Molex offers a number of DeviceNet diagnostic tools including Netmeter™, eNetmeter™, and NetAlytix™ software.

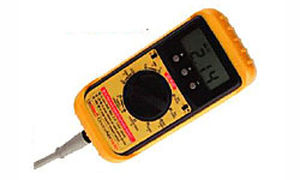

NetMeter™
Hand-held device to diagnose and summarize multiple DeviceNet bus operational variables into a single health index; clearly displays each fault condition and its source

NetAlytix™ Software
Easily implemented PC Software for eNetMeter; Package includes: main application, OPC Server and API/ DLL

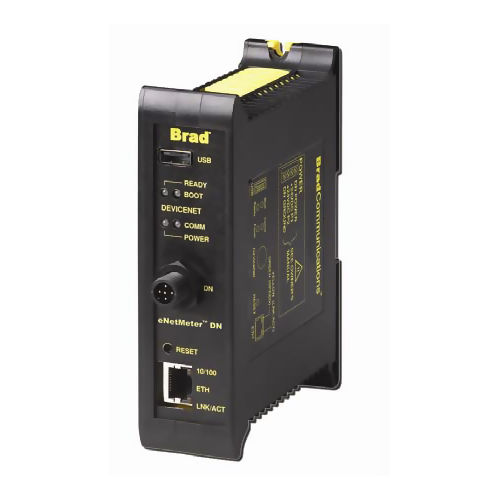

eNetMeter™ DN
Passive IP20-rated device for continuous high-speed measurement (up to 100 mega-samples per second) of critical network parameters (CAN signals, power and shield voltage)

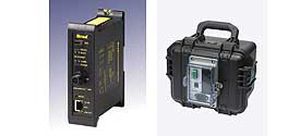

Test unit, including eNetmeter and NetAlytix software in a portable case, can be used on multiple networks

Parameter Name	Parameter Value
Options	Ethernet/IP for industrial networks
