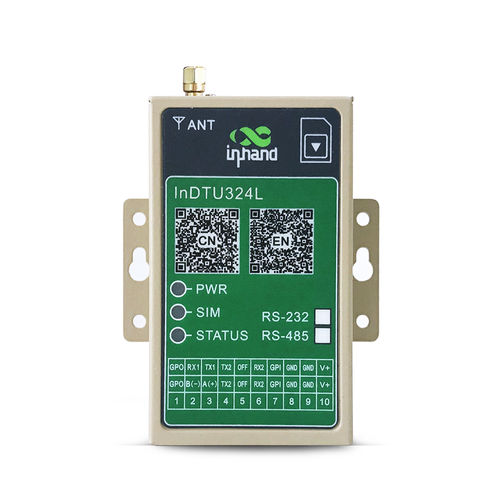

The InDTU324 cellular modem provides wireless data communications between field serial devices and the central control system. Available with both DATA Mode (which autonomously connects to your cloud server) and AT Mode (which supports standard AT commands), it enables remote monitoring and control of industrial field sites.

Highlights:

● Small form factor
● Wide operating temperature: -40°C~70°C
● Wide voltage input: 5~35VDC
● Metal housing, IP30 protection
● Compact-sized, easy to fit and integrate
● Support configuration software login via local serial port
● Support remote batch management via InHand Device Manager cloud
● Support SMS configuration
● Modbus RTU/Modbus TCP protocol conversion
● Support IEC101/IEC104 conversion
● Support transparent TCP/UDP protocol
● Support user-defined TCP/UDP heartbeat and login data
● Support multi-center, 1-5 centers

Applications:

● Distribution Automation Communications
● Cellular connectivity for Intelligent Lighting
● Agricultural Greenhouse Remote Monitoring
● Water Utilities Remote Meter Reading
● Distribution Automation Communications

Parameter Name	Parameter Value
Type	cellular DTU multi-service
Network	RS232 RS485 GPRS TCP/IP 4G 2G internet LTE UMTS 4G LTE
Application	industrial for M2M application
Mounting	wall-mounted
