electro-mechanical telescope version

max. lifting force 450 lbs.
stroke from 440 to 940 mm
low basic height
good accessibility
simple integration
very high flexibility
optimized ergonomics

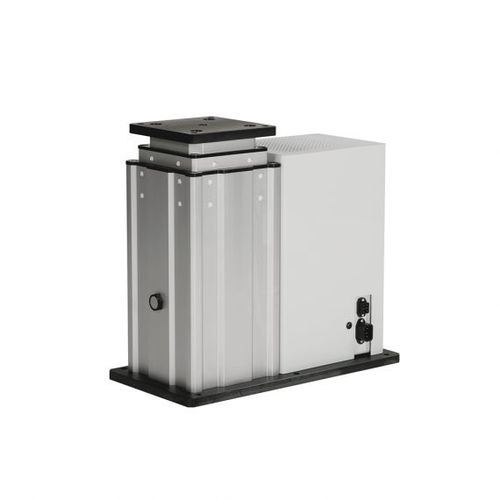

The drive of the telescopic lifting column Range consists of a 230 V A.C. motor and a spindle drive with trapezoidal spindle. A motor brake in combination with the trapezoidal spindle guarantees safe holding of the driven position. The telescopic guide unit consists of a precise aluminium profile section with a pre-stressed plain bearing with low friction and without clearance for exact positioning. The compact construction with low height and small width guarantees an unhindered accessibility to the workpiece from all sides. Mechanical and electric interfaces can be easily integrated in the process of automation.

Parameter Name	Parameter Value
Applications	industrial
Electrical characteristics	230 V
Other characteristics	telescopic
Stroke (mm)	440 - 940
