Benefits:
• Extended operating range of Omron cobots to increase productivity and save costs
• No hardware/software upgrades required
• Direct positioning access within the Omron TM control environment
• Vibration-free and virtually maintenance-free movement

• Certified Omron plug-and play positioning axis
• Ready-to-use complete system
• Software plugin Omron TM control system included
• Robust column design for industrial use

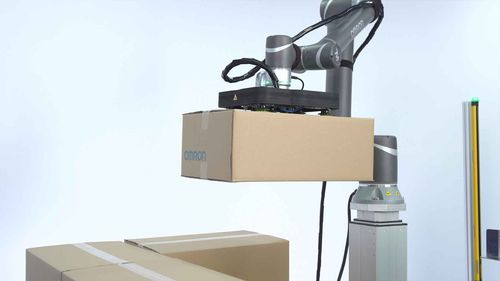

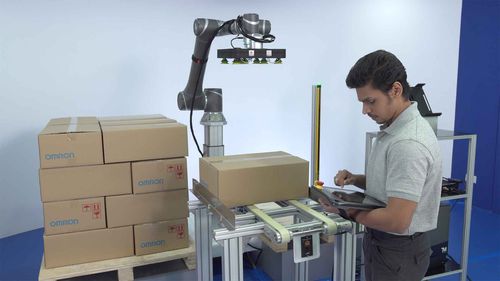

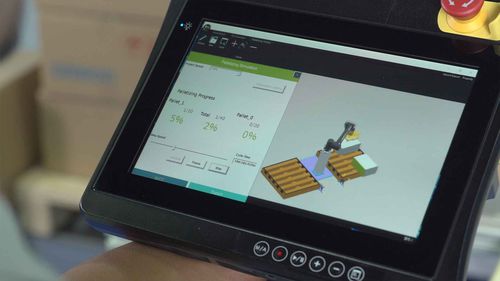

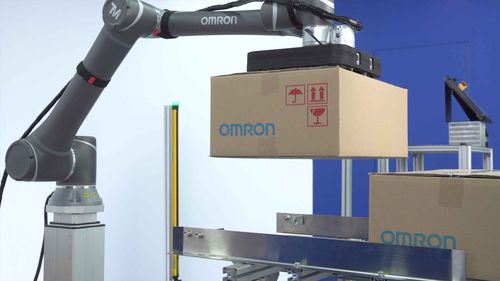

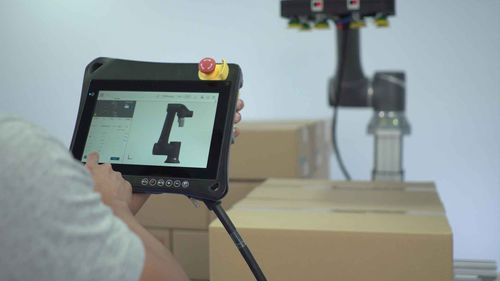

Cobots are often used for palletising but reach their limits as soon as the pallet stack reaches a certain height. The easy-to-assemble LIFTKIT increases the reach of any Omron TM cobot by moving it along a vertical axis. The cobot base can be raised or lowered during palletising so that it is always in an optimum working position. This increased range improves productivity and reduces costs. The LIFTKIT-OM is a ready-to-install system and includes a lifting column with an Omron cobot mounting interface, a controller and an Omron software plug-in for robots, so that movements can be programmed directly via the cobot controller. The system includes redundant safety-certified relays for a safe stop procedure during operation. The Omron mounting plate and column are equipped with additional threaded holes so that external cableveyor systems can be connected.

Parameter Name	Parameter Value
Applications	industrial
Other characteristics	telescopic
Force (N)	1500 - 1500
Stroke (mm)	500 - 900
