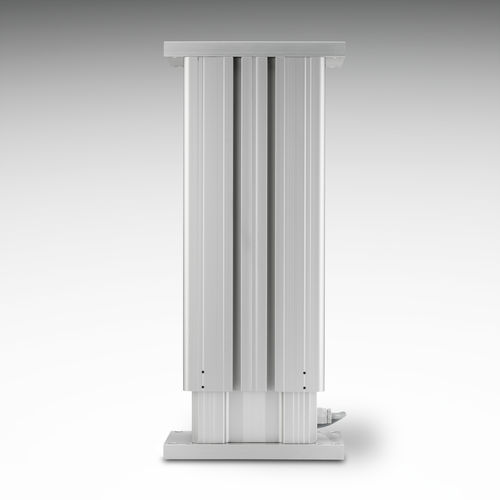

DMD / DMA Lifting Columns
DMD and DMA lifting columns are self-supporting, height adjustable units designed for a variety of industrial applications such as work tables, conveyors, loaders/unloaders, and many others.

This height adjustment capability especially serves work environments that need to meet specific ergonomic requirements for a wide range of operator positions.

Rugged and robust, these columns provide high load torque capability in an extruded anodized aluminum, self-supporting frame. Incorporated into the design are Thomson's Electrak actuator units in both acme and ball screw versions.

Mid and end of stroke protections include an overload clutch along a T-slot groove design throughout the entire column profile.

DMD/DMA Features and Options
• Extruded anodized aluminium column
• Internally restrained
• Holding brake on ball screw units
• Self-locking on acme units
• Overload clutch for mid/end-stroke protection
• Auto reset thermal switch motor protection
• Safety nut on all ball screw models
• T-slot grooves on entire profile
• CE Compliant
• Optional linear potentiometer

Parameter Name	Parameter Value
Applications	industrial
Electrical characteristics	12 VDC 24V DC AC
Other characteristics	telescopic
Force (N)	2250 - 6000
Stroke (mm)	600 - 600
