With increasing demand for improved product quality and efficiency, energy saving, predictive maintenance and emission reduction, thermal imaging cameras and systems play an important role in modern and industrial processing.

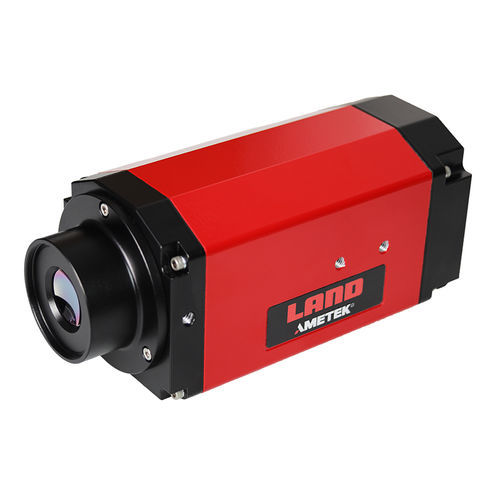

The new MWIR-640 390 thermal imager builds on more than 20 years of thermal imaging experience, expanding the market-leading range of AMETEK Land thermal imaging family and temperature measurement solutions.
Advanced spectral filtering enables the MWIR-640 390 to provide clear images through smoke or particulates in high temperature processes, while showing every detail of surface structure in heat treatment applications.
Two temperature measurement ranges, 500 °C to 1800 °C (932 to 3271 °F) and 300 to 1200 °C (572 to 2192 °F), cover applications from melting to final processing. Three lens options offer a choice of optical field of view, all with motorised focus.
An integrated webserver with multiple I/O options enables the camera to be used autonomously or easily integrated into new or existing process control systems. The webserver provides easy camera access, configuration and remote control, using a standard browser.
The MWIR-640 measures and streams live true-temperature images at up to 60 frames per second, providing high-precision temperature measurements and thermal profiles to continuously control, document, and visualise industrial processes
INDUSTRIAL THERMAL IMAGING
Designed for use in harsh industrial and environmental conditions, the MWIR-640’s smart, Industry 4.0 capabilities, bi-direction digital interfaces and on-board I/O provide reliable and robust, real-time thermal imaging measurement and imagery in industrial processes
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
industrial
|
| Technology |
digital
|
| Function |
thermal imaging
|
| Resolution level |
640 x 480
|
