G-M1C051-T | Industrial Modbus Ethernet / Wi-Fi to Serial Cloud Gateway

Modbus protocol both master and slave modes
IEEE 802.11 b/g/n Wireless Standards
IEEE 802.3 10/100 Based Standards
TCP / IP / UDP Network Protocols

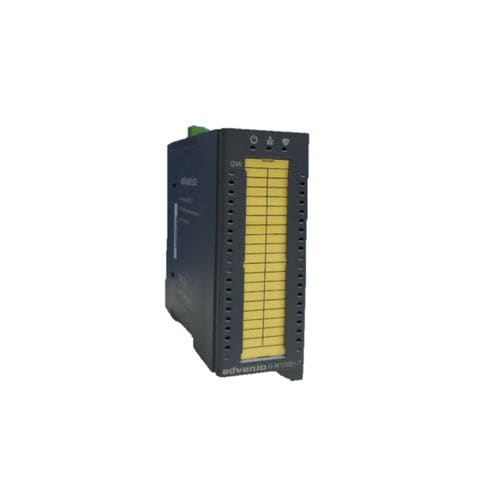

Gorilla Series-Industrial Modbus Wi-Fi to Serial Cloud Gateway
The Gorilla G-M1C051-T Gateway is used to transmit data between Modbus RTU and Modbus TCP devices. We offer one Wi-Fi to one RS-485 port which is reserved for Wolf RS-485 I/O modules and one RS-232 / 422 / 485 selectable port which can be used for third-party serial devices.
Especially for our Wolf Series users, if you connect a Wolf module to our Gorilla G-M1C051-T Gateway, and voilà, a Wi-Fi I/O will be ready for you. Users can use Gorilla G-M1C051-T to create data channels among Wolf RS-485 I/O modules, front-end serial devices and cloud. Besides, Gorilla GM1C051-T provide web service which allows users to create their own web pages by using HTML5, than to regard it as a local HMI for Advanio Wolf RS-485 I/O modules.

General
Power Input
Power Consumption
Supply Connection10~60VDC
200mA @ 24V
COMBICON MC 1,5/5 3-pin, green
Dimensions (L x W x H)120.1 x 47.2 x 121.1 mm
WeightApprox. 180 g
LED IndicatorsSystem, Config, WLAN
Operating Temperature-20~60 °C
Clock SynchronizationManual/Cyclic over SNTP Protocol/Time Zone Support
Web ApplicationOn board, 32MB to store user application, and optional
extends up to 16GB by request
Cloud CommunicatorSupport MTK MCS (Optional)
Other CS Vendors
Wi-Fi ConnectionIEEE 802.11/b/g/n, internal built-in ceramic antenna and
optional external antenna via I-PEX connector

Parameter Name	Parameter Value
Type	industrial
Network	Ethernet wireless IP serial TCP Modbus Modbus RTU
Other characteristics	slave
