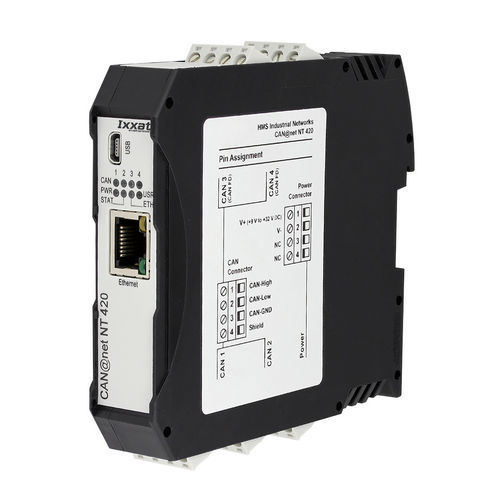

The CAN@net NT is offered in three variants, as CAN@net NT 100 with one classic CAN channel and D-Sub 9 connector, as CAN@net NT 200 with two classic CAN channels and as CAN@net NT 420 with four CAN channels, of which two channels can be switched between CAN and CAN FD. All devices offer three operation modes and can be used as a PC interface as bridge and gateway.

Features

Up to four independent CAN channels (2 CAN FD channels)
Powerful filter, ID translation, data mapping and multiplexing functionality
MQTT support for an easy cloud connection (publisher and subscriber)
Execution of pre-defined actions using event-triggered "Action Rules"
Programming of any kind of action rules using LUA
Windows configuration tool for easy configuration via USB or Ethernet
Configurable security levels for device access (configuration or firmware upload)
Designed for high performance in industrial environments

Benefits

Easy coupling of CAN and CAN-FD systems and devices
Bridging of large distances and easy remote system access using Ethernet
Cost savings due to simple wiring
Allows system expansion and tree/star topologies
Increased system reliability
Line protection by galvanic isolation

Parameter Name	Parameter Value
Type	industrial security
Network	Ethernet USB MQTT CAN
Other characteristics	IP20 bridge
Transfer rate	Max.: 1,000 kb/sMin.: 5 kb/s
