Character height 50 to 200 mm, software switchable
Free software for parameterization and transmission of ASCII texts
Message display also as ticker
International character set (8 languages)
Half life of LEDs: 100,000 hours
Devices for ceiling, wall and base mounting
Power supply 110 to 230 VAC

Our Suggestion For Permanent Usage in Harsh Industrial Environments

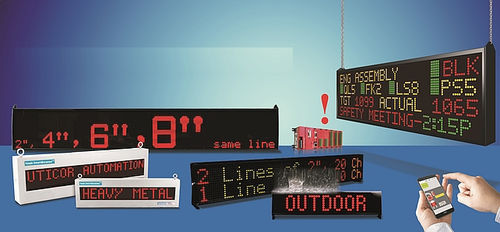

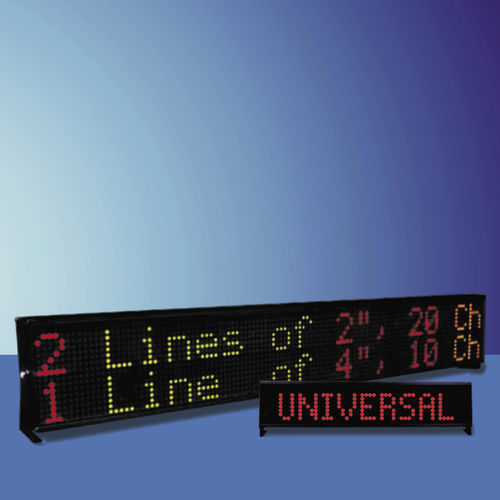

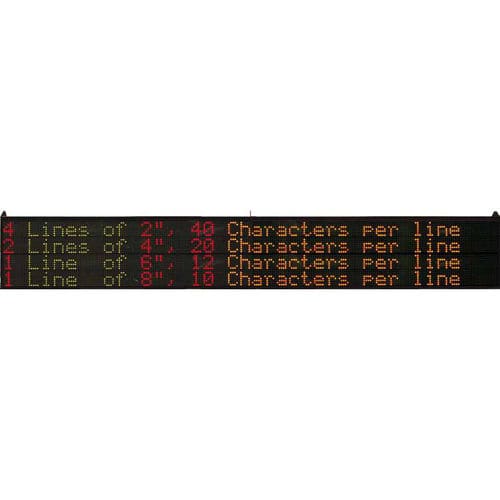

1 to 4 Line Large Displays With 10 to 40 Characters per Line in Aluminium Housing
Available With RED And TRI-Color LEDs
Brightness 1750 cd
Protection Class IP54 For Interior Usage
Ambient Temperature 0° to 60° C
Interfaces: 1 x RS232, 1 x RS422/485 (on Board), Ethernet, DeviceNet, Profibus (Option)

Parameter Name	Parameter Value
Type	LED alphanumeric numeric dot-matrix
Format	large-format, 1-line, 2-line, 4-line
Applications	industrial information control digital signage set point for weighing devices for gas stations
Other characteristics	RS485 RS-232 PROFIBUS Modbus RS422 Ethernet indoor wall-mounted ceiling IP54 NEMA 4
Height	Max.: 200 mm (7.874 in)Min.: 50 mm (1.9685 in)
