All-in-one blister control

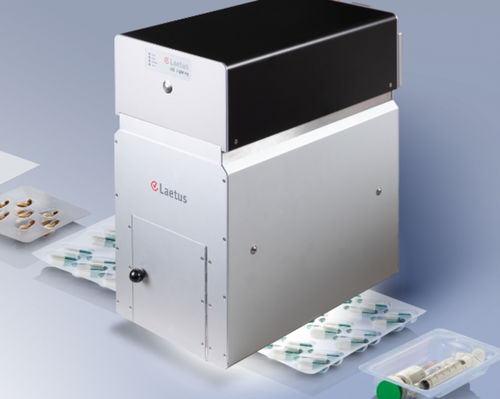

POLYPHEM wt checks the presence of colored tablets, dragees, and capsules and recognizes errors in form, color and position, as well as contamination, damage and overfilling.

Various objects and formats
The versatile camera systems also inspects ampoules, syringes, applicators and vials filled in blisters, as well as other primary packaging, such as large format display packaging, cartons and bottles.

Two basic components

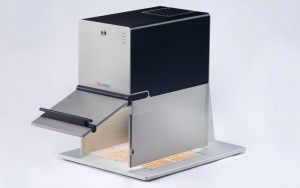

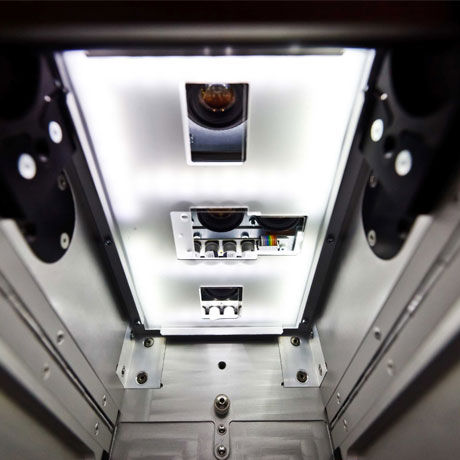

POLYPHEM wt primarily consists of a GAMP-compliant industrial computer and the lighting unit with one or more integrated cameras.

Modules for individual process requirements
Different optional modules enable further, customer-specific applications like three-dimensional height analysis or inspection in low-contrast surroundings.

Applications
Increasing quality and safety requirements mean it is necessary to check for further criteria in addition to simply the presence inspection. Irregularities can occur when filling pharmaceuticals in blisters, which can have relevant impacts on the quality:

Presence
Lack of contents are unacceptable from a quality point of view and are immediately identified.

Damage/position error
Damaged products are ejected after clear identification. Objects outside of the blister are also identified. These must be removed before sealing.

Parameter Name	Parameter Value
Applications	industrial medical laboratory
Technology	analog
Function	monitoring spark optical emission inspection safety
Spectrum	full-color
Sensor	FPA
Interface	FireWire
