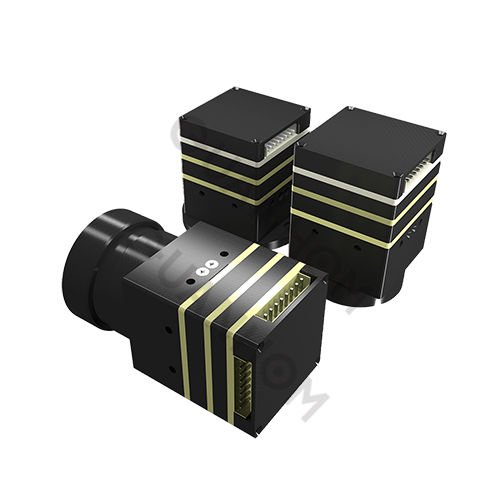

Industrial camera module TED6412

Industrial camera module TED6412

Industrial camera module TED6412

About


Detector type
Uncooled focal plane

Resolution
640*512

Pixel Pitch
12μm

Wavelength
8-14μm

Frame Rate
50Hz

NETD
<40m(F/1,300K,30Hz)

Rsponse time constant
<12ms

Polarity display
White/Black Hot

Pseudo Colour
Support 6 pseudo colors

Cross display
On/Off

Cross position
Adjustable

Image gain
Adjustable

Image brightness
Adjustable

Image enhancement
Adjustable

Image reversal
Veryical/horizontal

Electronic zoom
1-20 times

Background correction
Support

Automatic focus
Support

Reset the system
Support

Digital Video Output
BT656-P

Analogue Video Output
CVBS/PAL

Electronic zoom lens
Support

Communication Interface
RS232(19200Hz)/RS422(9600Hz)

Operating Voltage
DC 4.5-15V

Power Consumption
≤1.2W

Image stabilization time
<6s

Protection features
Connect reversely



PARAMETERS

Parameter Name Parameter Value
Applications
  • industrial
  • machine vision
  • body temperature
  • for airborne applications
  • for marine applications
Technology
digital
Function
  • thermal imaging
  • surveillance
Spectrum
LWIR
Interface
with analog output
Other characteristics
  • zoom
  • airborne
  • uncooled
