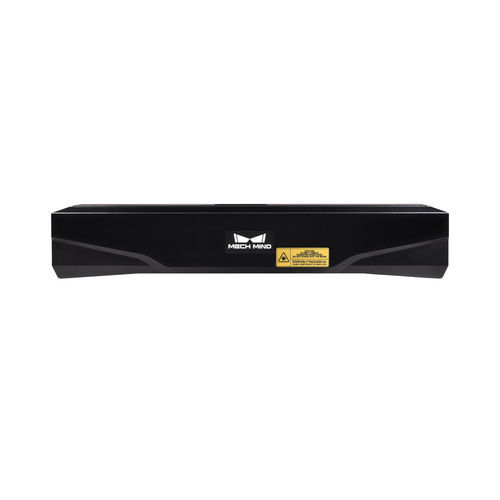

With a working distance of 1,200 mm - 3,000 mm and a calibration accuracy of 1.0 mm, the
Mech-Eye Laser L 3D camera offers the optimal combination of a large field of view with even
greater accuracy. The Laser L camera is ideal for applications in a working environment with difficult lighting conditions.

Optimal scanning range: 1,200 - 3,000 mm
Min. FOV: 1,200 x 1,000 mm @ 1.2 m
Max. FOV: 3,000 x 2,400 mm @ 3 m
Resolution: 2,048 x 1,536 px (3 MP)
Sensor type: CMOS (Monochrome)
Projector: Structured laser light (Class 2)
Z Repeatability: 0.5 mm @ 3 m
Calibration accuracy: 1 mm @ 3 m
Typical capture time: 0.5 - 0.9 s
Baseline: 400 mm
Dimension: 459 x 89 x 121 mm
Weight: 3 kg
Working temperature: -10 - 45° C (max. gradient 10°/hour)
Interface: GigE, C++, C#, Python, ROS
Connectors: M12, 8-pin, A-coded (F) - Data & M12, 4-pin, A-coded (F) - Power
Power supply: 24 V DC
Certification: CE/FCC/VCCI
Protection class: IP65
Cooling: Passive

Parameter Name	Parameter Value
Applications	industrial machine vision for the automotive industry for production for robotics for the metallurgical industry for pallet detection
Technology	3D
Function	detection image processing
Spectrum	full-color
Sensor	CMOS
Interface	GigE Ethernet
Resolution level	ultra-high resolution, 2048 x 1536
Resolution	3 Mpx 12 Mpx
Other characteristics	high-speed indoor megapixel high-performance long-range low-light wide-viewing angle rugged video compact
