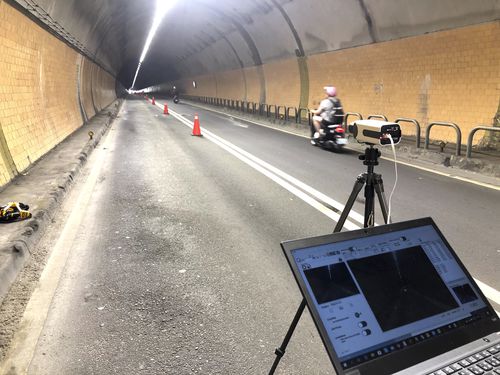

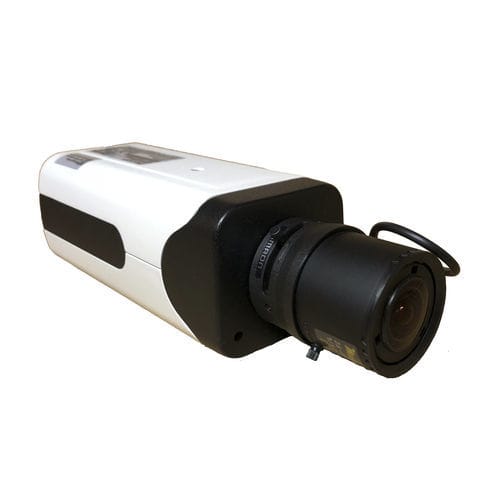

Image Luminance Meter (ILM). With our ILMA software, capture all luminance points in one shot, reducing measurement time by 50%. It offers ±2% accuracy and follows CIE standards. ILM measures luminaires, indicators, optics, roadways, and tunnels. Its image-based design reduces size by 60% and weight by 27%. Collaborating with Signify, we integrated ILM into 15 tunnel lighting systems, achieving 10% cost reduction and an impressive 70% power consumption decrease.

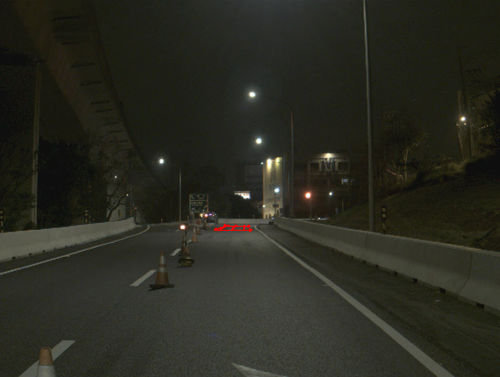

Applications: Tunnel, Roadway, Building, Sign, Luminaire, Optical, Backlight, Indicator

Luminance Range: 0.1-50,000 nit
Varied Focal Length: f=2.8~8 mm (F1.2~F1.95)
Field of View: 51°~144°(Horizontal) 39°~84°(Vertical)
Luminance Accuracy: ±2% (@2856 K)
Luminance Linearity: ±3%
Luminance Repeatability: 2%
Interface: Gigabit Ethernet Interface

Parameter Name	Parameter Value
Applications	industrial for the automotive industry laboratory
Technology	WDR
Function	measuring
Spectrum	visible
Sensor	CMOS
Interface	gigabit Ethernet
Resolution level	2048 x 1536
Resolution	3 Mpx
