About

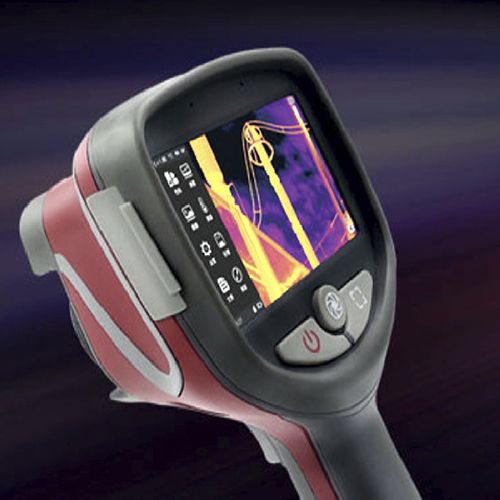

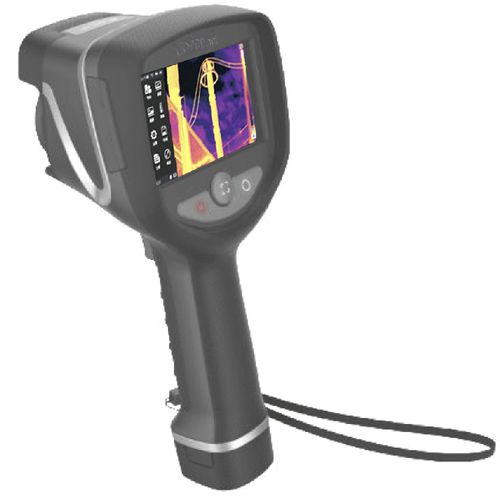

irPOD (T5) T6 is with cutting-edge thermal imaging technology; provide high performance with 5MP visual camera, interchangeable lens, large 5” tilt-swivel OLED, manual & auto focus. Thermal imaging cameras irPOD (T5)T6 is with ergonomic design, super image quality, multiple measurements, providing powerful assistance for thermographers to have the most efficient instrument for maintenance inspections. irPOD (T5)T6 has a wide range temperature measurement to satisfy variety of thermograph applications, they enable you to identify the small temperature difference that could cause big problems.
The thermal imaging camera system as absolute Top-Model
The instrument provides practically features as USB Real-time Interface to PC, video recording function, laser pointer and voice recording facility. irPOD (T5)T6 is a light weight thermal imager (0,95kg) with semi-wide angle standard lens, internal Video Image storage and 128.000 IR-images memory, multilingual easy using operating environment, Video-/ Audio-output, large color touch-Display, measurement features as Point-/ Box-/ and Line- function with Hot-/Cold- spot-indicator for over- and under temperature display, dew point detection, ISO-thermal screen including Laser pointer for target locating and LED-Light. The integrated temperature extension range up to 1200°C is a further feature.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
industrial
|
| Technology |
XGA+
|
| Function |
thermal imaging
|
| Spectrum |
IR
|
| Sensor |
FPA
|
| Interface |
USB
|
| Resolution level |
ultra-high resolution
|
| Other characteristics |
|
