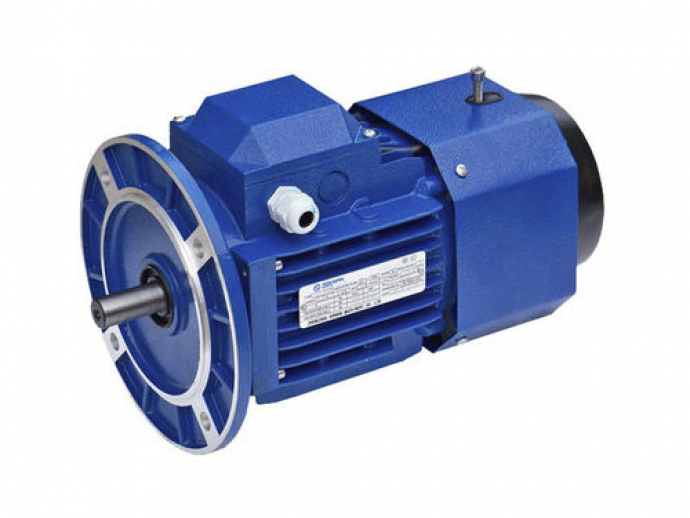

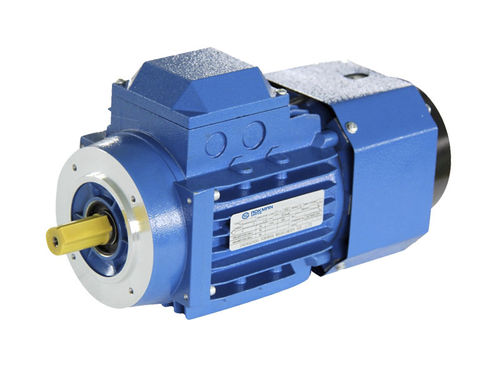

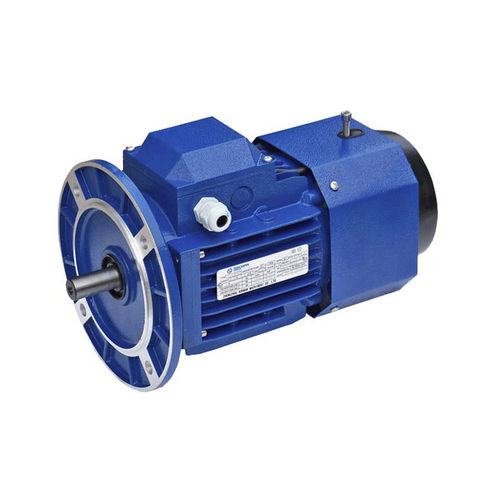

YEJ Series Electromagnetic Brake Induction Motors
Power: 0.12 kW~22 kW
Poles: 2P, 4P, 6P
Frequency: 50Hz/60Hz
Protection Class: IP54, IP55, IP56
Insulation Class: F
Bearing: C&U, NSK, SKF
Brake: Electromagnetic Brakes

AOKMAN® YEJ series electromagnetic brake 3 phase asynchronous motors (induction motors) adopts IEC standards, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.

Components:
1. Housing: Die-casting Aluminum
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF

Models & Parameters:
Voltage: 380V
Frequency: 50Hz/60Hz
Power: 0.12 kW~22 kW (0.16HP~30HP)
Poles: 2P, 4P, 6P
Output Speed: 3000RPM, 1500RPM, 1000RPM
Frame Sizes: H63~H180
Shaft Diameter: Φ11~Φ48
Ingress Protection: IP54, IP55, IP56
Insulation Level: F
Duty: Continuous duty (S1)
Cooling: IC411
Brake: 96V DC Supply Electromagnetic Brakes

Mounting Options:
IM B3
IM B5, IM B14
IM B34, IM B35

Parameter Name	Parameter Value
AC/DC	DC
Type	induction
Protection class	waterproof IP54 IP55
Configuration	aluminum
Power (W)	0.12 - 22
Rotational speed (rpm)	1000 - 1000
