Quick Details:

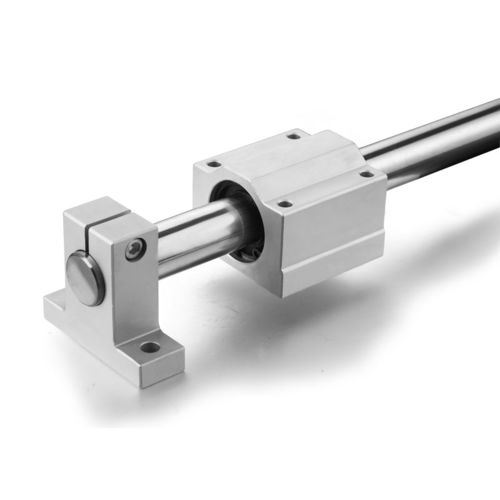

• Model Number: SF3-SF120-linear shaft
• Brand Name: Weifa-linear shaft
• Place of Origin: Jiangsu, China (Mainland)
• Material: CK45/S45C/1045/1.1191
• Length: According to your request (L1000-6000mm is acceptable)
• Shaft Diameter: 3-120mm
• Surface hardness: HRC58-60
• Surface hardening depth: 0.8-3mm
• Chrome layer thickness: 15μm ~ 25μm(According to your request)
• Chrome layer hardness: above HV800
• Axis straightness: 0.15mm /1000mm
• Roughness: Ra 0.2μm~0.4μm
• Precision: g6/f7
• Packaging Details: Anti rust oil to be sprayed on rod surface and each rod to be packed in paper sleeve and then in wooden box
• Delivery Detail: 15 Days of linear shaft
• MOQ: 1 meter of sample is acceptable
Product Features:
The Induction Hardened Chrome Bars are fabricated using optimum quality raw material and latest machinery. The bars undergo rigorous processes like pilling, straightening, hardening, grinding, polishing, hard chrome plating and finishing under the supervision of experienced engineers.
Different from the Hard Chrome Plated Piston Rods, the surface hardness of the Induction Hardened Chrome Bars is higher than any other kind of hard chrome plated bars via high-frequency induction technique. The Induction Hardened Chrome Bars are usually used as guide rail or slide rail matching with L.M. Bearing because of the high durability, abrasion resistance, longer working life and dimensional accuracy.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Material |
chrome steel
|
| Type |
|
| Product applications |
|
| Other characteristics |
|
| Diameter (mm) |
3 - 120
|
| Length (mm) |
1000 - 6000
|
