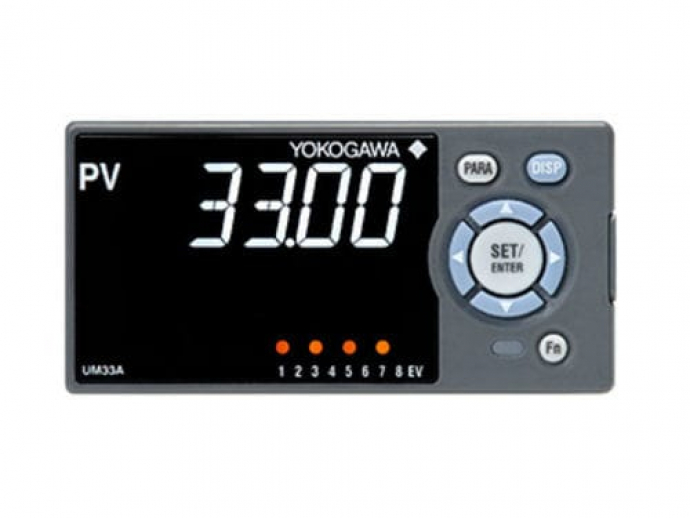

The UM33A is a digital indicator with alarms provides up to 9 alarms outputs and input correction function (PV bias, Polygonal line approximation, polygonal line bias). Also, 24 VDC sensor power supply is available as an option.

Advanced Function

PV bias, polygonal line approximatin, and polygonal line bias
24 VDC sensor power supply available

Simplicity

Easy-to-read, 14-segment large color LCD display
Scrolling text feature for parameters
Navigation guide & navigation keys
Programmable funciton keys
User settable default values
Multiple language support (English, Spanish, French, German)
Compact design of 65-mm depth

Networking

RS-485 (Modbus/RTU, peer to peer, coordinated, PC-Link, CC-Link)
RS-485 (Modbus/RTU data monitoring function, Modbus/RTU master function)

Reliability

3 year warranty*1
RoHS/WEEE
NEMA4*2/IP66 front panel

Application Software

LL50A parameters setting software with the ladder program building function (sold seperately)

*1: The 3 year warranty extendes 36 months
*2: Hose-down test only

Parameter Name	Parameter Value
Measured value	power
Display	digital LCD
Type	panel-mount
Other characteristics	programmable RS-485 compact Modbus with alarm
