Indicator PID controller C7G

Indicator PID controller C7G

Indicator PID controller C7G

About

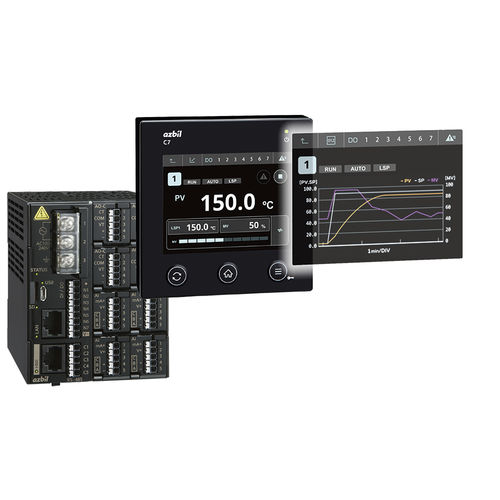

For use with semiconductor-manufacturing and food-processing equipment, among others, we have developed new controllers, model C7G/C7S, that maintains a consistent temperature within a loop.
In spite of its compact frame, the C7G/C7S control as many as four systems simultaneously.
For superior usability, the display unit is separable from the main unit and features a touch panel color LCD for ease of use and high visibility.
In addition, we have developed a health index function*1 that uses sensing data and control signal (M.V.) amplitude to quantify changes in control loop behavior. This provides advance warning of equipment problems, allowing timely preventative maintenance.

Feature1: Excellent usability
We developed the hardware from the user’s viewpoint in order to achieve a high level of usability.
Better usability and readability of display
Separable structure
Screwless-clamp terminal block

Feature2: Seamless coordination with other equipment maximizes value

Ethernet as a standard interface provides high-speed communication with a variety of devices. RS-485 is also a standard feature, allowing improved flexibility in network construction. A PLC link function, which provides an easy Ethernet connection with Mitsubishi Electric’s PLC, is also available.



PARAMETERS

Parameter Name Parameter Value
Associated function
indicator
Input
universal, 2 analog inputs, Modbus
Number of lines/digits
4-digit, 2-line, 3-digit
Mounting
  • panel-mount
  • DIN rail mounted
