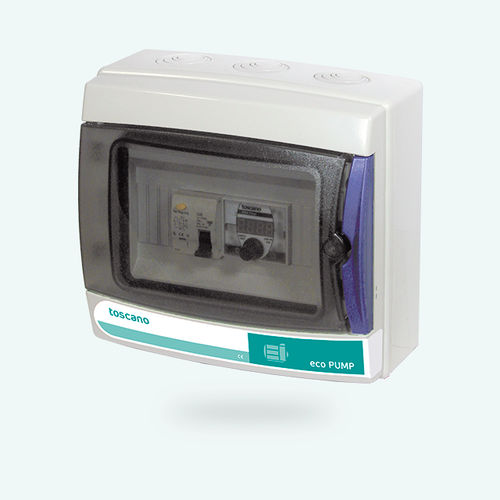

Modular digital protection and control panel for 1 submersible pump, single-phase/three-phase, up to 16A, multi-control.
Wells / Boreholes / Booster sets
- Very easy and intuitive operation.
- Includes TPM6 control module.
- Control with or without probes (underload) or level float switches.
- Protections: circuit breaker, overload, underload, phase loss, dry operation,
successive starts.
- Digital display (amps, operation hours, no. of starts, alarms, reset time, settings).
- Remote control input ON/OFF.
Codes and references
- 10002513 ECO-PUMP-230 (0...12A)
- 10002514 ECO-PUMP-400 (0...16A)
Specifications
- Power: 230 or 400VAC, ±20%, 50-60Hz (single/three-phase)
- Maximum pump current: 12A (1-ph), 16A (3-ph) – AC3
- Signaling and control: Pump in operation, low level, alarm
- Maximum cable section in terminals: 10mm² (power), 4mm² (control)
- Glands configuration: 1xM20 (power), 1xM20 (motor), 1xM20 (control)
- Dimensions (mm) / protection level: 215 x 235 x 110 / IP65
- Protection and control module: TPM6
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Pump type |
immersed
|
