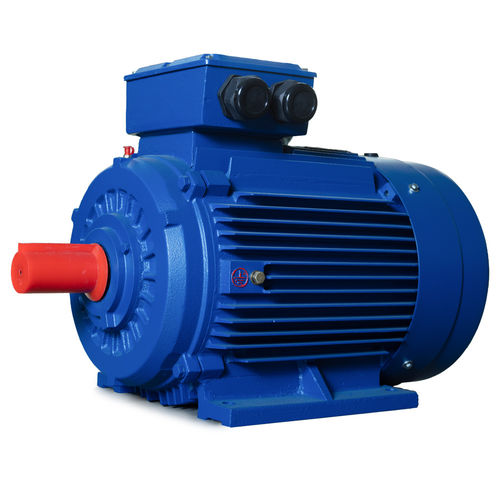

SUNVIM IE2 electric motors are manufactured according to international standard IEC60034-30-1:2014, and are totally enclosed fan cooled squirrel cage motors with new material, new process and new standard. They are widely used to drive various general equipments, like fans, pumps, machining tools, compressors, and transport machineries. The motors can also work safely and stably in industry field of petroleum, chemical , steel, mining and other places where there is with heavy load and harsh operating environment. All IE2 motors are provided with protection grade IP55, insulation grade F.

IE2 Series motors are cage induction motor designed in accordance with IEC standards and IE2 energy efficiency.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	induction
Voltage (V)	415 - 415
Protection class	IP55 for harsh environments
Configuration	squirrel cage TEFC
Number of poles	4-pole 6-pole 2-pole
Cooling mechanism	air-cooled forced-ventilated self-ventilated
Applications	for pumps for industrial applications for machine tools for compressors for the chemical industry
Other characteristics	high-efficiency IE2
Power (W)	750 - 375000
Intensity (A)	1.6 - 681
Torque (Nm)	40 - 40 2.5 - 2.5
Rotational speed (rpm)	910 - 2980
Operating temperature (°C)	-15 - 40
