Highlights
• - 8-Port Master Hardware I2C Converter
• - Dual Communications Interface Ports
• - Choice of Two Communication Modules
• - Communicates with Two PCs Simultaneously
• - Supports Many Communication Expansion Options Including:
o - Ethernet, WiFi TCP/IP, and WiFi MQTT
o - Bluetooth, RS-485, RS-232, and Long Range Wireless
• - Eight 5V nodeLynk I2C Communication Ports
• - 2-Amp Power Supply Shared Among All 8 nodeLynk I2C Ports
• - I2C Bus Scanning, I2C Write, and I2C Read Commands
• - I2C Port Switching and I2C Write Read Commands
• - Test, Control, and Learn I2C Communications
• - Connect Sensors for Monitoring Applications
• - Control Relays, Pumps, Lights, and More
• - Long-Range Wireless I2C Upgrade Option
• - Integrated ProXR Enterprise Command Set

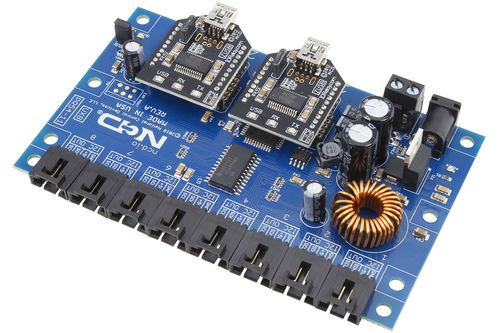

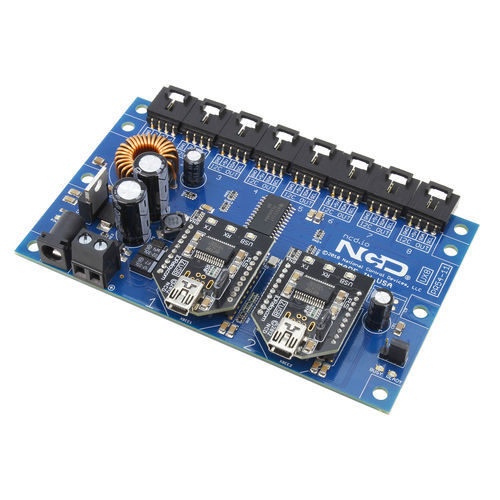

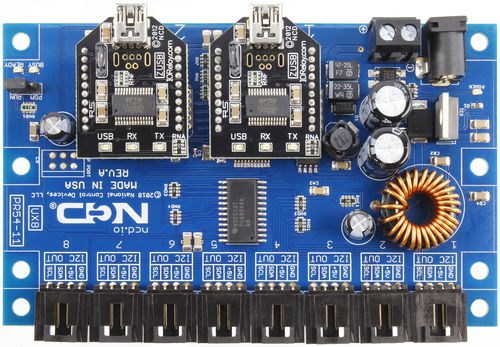

The Ultimate Serial to I2C Converter Adapter
Introducing the world’s most powerful and expandable Serial to I2C Converter. With Eight nodeLynk I2C Expansion Ports and Two Interchangeable Communications Ports compatible with Digi XBee®, this powerful I2C adapter offers the highest possible conversion speed with the most efficient command set available. Communications modules may be interchanged for your choice of communication requirements. Based on the endNode architecture, this controller provides an excellent platform to help simplify communications to otherwise complex I2C devices. Over a year in development, this device served as the development platform for our endNodes architecture, which includes an incredible command set for relay control, far beyond I2C conversion. New features include hardware I2C communications now supporting speeds up to 700KHz.

Parameter Name	Parameter Value
Type	communications
Bus	Ethernet, serial, RS-232, RS-485, WiFi, I2C
Other characteristics	wireless
