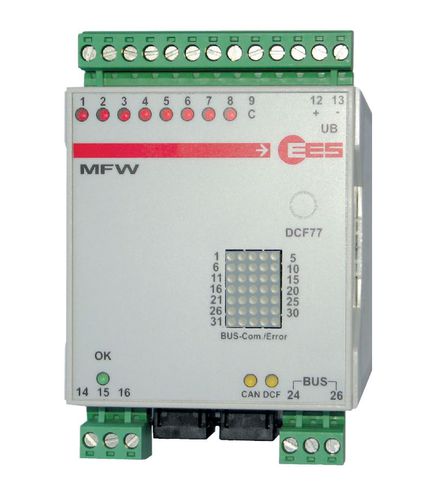

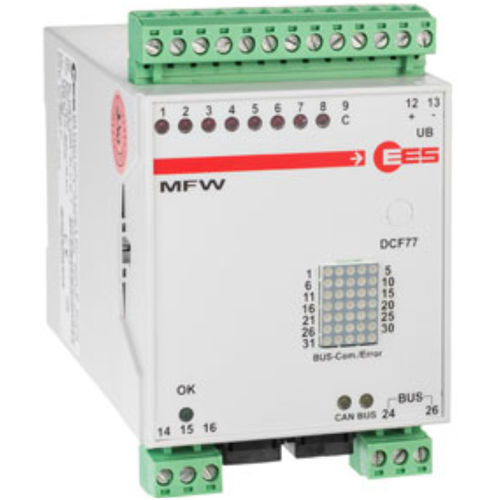

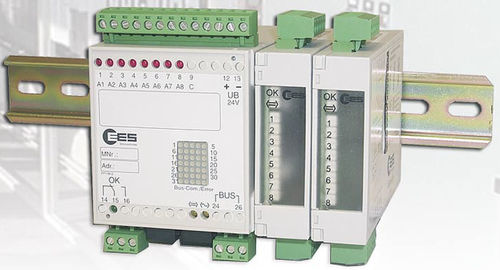

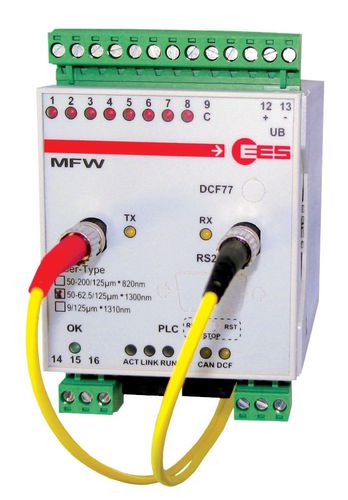

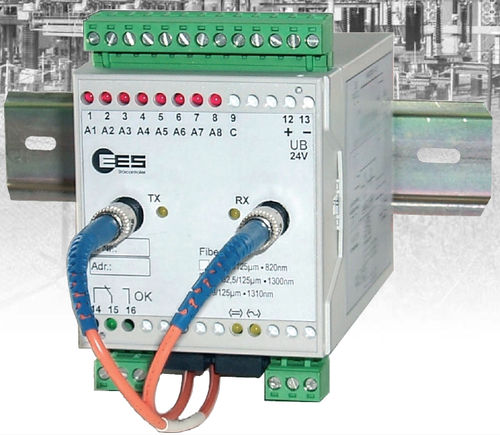

The MFW Modular Telecontrol Network has been specially designed for the signal transmisson on live cables and cable screens. If control cables are missing or there is no network coverage, the MFW Powerline telecontrol system is suitable, which uses a very safe carrier-frequency process for signal transmission and has therefore proven itself for use in harsh, interference-contaminated industrial environments. The MFW is suitable for bridging distances of several kilometres. The MFW power line telecontrol system operates as standard with a carrier frequency of 109.4 kHz. This means it corresponds to class 122. The operating materials of this class are suitable for general use and therefore do not require any notification or permission from registration authorities.

The transmission network can be designed as required as a star, ring or tree system. In order to achieve substantial distances for data transmission we recommend in each case the use of carrier frequency traps.

Parameter Name	Parameter Value
Other characteristics	modular I/O Powerline
