About

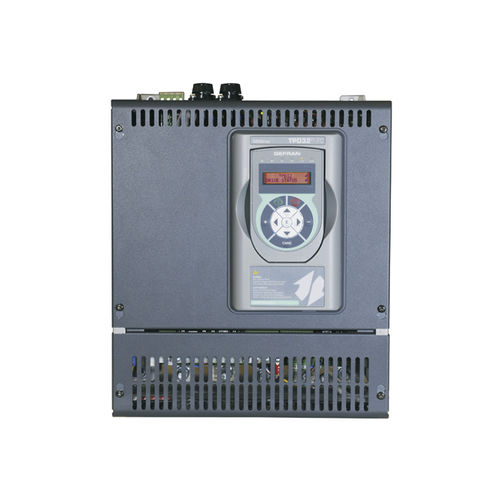

The TPD32 EV – FC series of digital field regulators offers substantial advantages with the use of high-power motors, where standard control units integrated in armature converters do not have the necessary field control capabilities.
The 4-quadrant versions are a technical and cost-effective solution for managing speed reversal of 2-quadrant bridges, while guaranteeing high-level control dynamics through the use of an optical fibre system to provide advanced master/slave management.
The TPD32 EV – FC series of regulators are also suitable for controlling various DC loads (except motors) such as galvanic and magnetic loads, etc.
Options:
Programming keypad KB – TPD32 EV
I/O expansion card TBO-32
Profibus interface SBI-PDP-32
DeviceNet interface SBI-DN
CANopen interface SBI-COP
Description
Field regulators from 20A to 650A
* 3ph 230Vac…500Vac, 50/60Hz
* 3ph 60Vac…200Vac, 50/60Hz
* Rated currents: from 20A to 650A (biquadrant and tetraquadrant)
* IP20
* Marks: CE, UL, cUL, EAC
Features:
Digital I/O logic control in PNP and/or NPN configuration
3 Differential analog inputs ±10Vdc (0..4-20mA)
2 Analog outputs (±10Vdc)
8 Digital inputs (4 fixed + programmable)
4 Optocoupled Digital outputs
2 Relay outputs
1 Motor thermistor input
RS485 Serial line (ModbusRTU protocol)
Interfacing with fieldbus protocol as: ProfibusDP, CANopen, DeviceNet
Protection degree: IP20
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristics |
|
