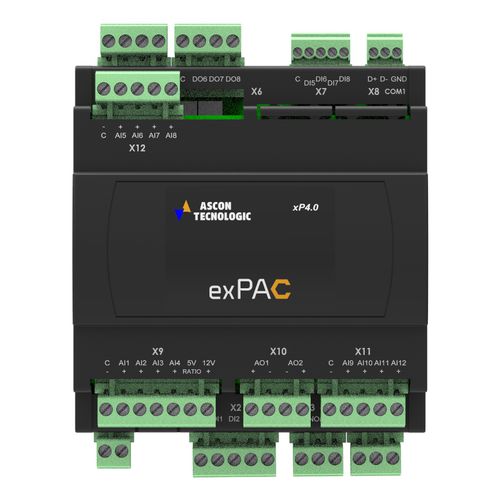

Remote expansion module for the sigmaPAC family of programmable controllers

It allows to expand the resources available on nP4 and AC3nP, providing additional inputs and outputs:

Inputs:
– 0/4 High level analogue: Configurable 0… 5 V, 0… 10 V, 0/4 … 20 mA
– 0/8 Analogue for temperature: PT1000, NTC 103-AT2
– 4/8 Digital (voltage free contacts or 12 … 48 Vac / Vdc)
Outputs:
– 0/2 Analogue outputs: 0 … 10 V
– 6 Relays (Relay 2 A SPST-NO) + 2 Relays (Relay 8 A SPDT)

FUNCTION -
Expansion module

DIMENSIONS -
6 DIN Module 105 x 110 mm

POWER SUPPLY -
24 Vdc

NUMBER OF OUTPUTS -
8

OUTPUTS -
Relay or voltage

DIGITAL INPUTS -
8

ANALOGUE INPUTS -
8 Universal

COMMUNICATION -
RS 485 isolated

ETHERNET -
Yes

ANALOG OUTPUTS IN CURRENT OR VOLTAGE -
2

PROGRAMMING LANGUAGES -
IL, ST, FBD, LD, SFC, CFC

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Options	I/O relay
Other characteristics	with programmable logic controller (PLC)
