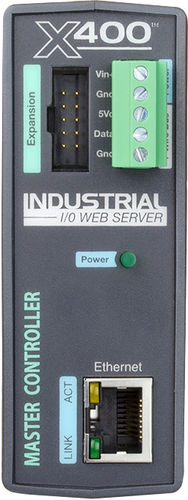

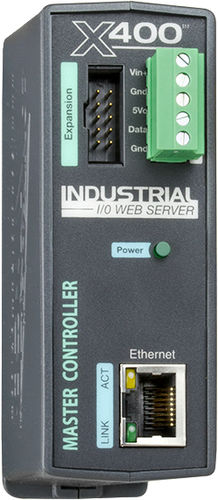

Modular, web-enabled, industrial I/O controller that allows you to add various combinations of I/O to tailor it to your specific application. Expansion modules can either be directly connected to the X-400 through the expansion bus, or you can connect remote ControlByWeb devices through an Ethernet network, including the Internet.

Expandable & Full-Featured

Expansion Modules
Add up to 32 expansion modules and/or remote I/O devices for remote monitoring and control for up to 64 I/O.

Custom Logic
Create custom logic with no scripting necessary using the X-400’s intuitive Task Builder.

Ethernet Control & Monitoring
Control and/or monitor over any TCP/IP network including LAN and WAN networks, IP-based industrial control networks, and the Internet.

Cellular Control & Monitoring

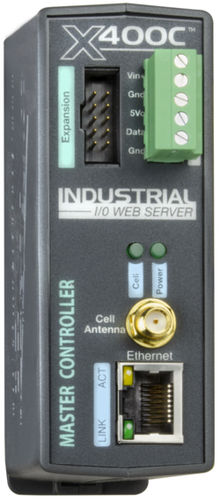

The X-400C model includes a cellular modem for remote communication and can also act as a network connectivity failover.

Expansion Bus

Add I/O expansion modules (below) to the X-400 for an I/O solution that is tailored to your specific application. These modules provide a broad mix of capabilities that are ideal in a variety of industries and applications from data acquisition to complex process control.

Peer-to-Peer Communication (P2P)

The X-400 supports peer-to-peer communication between ControlByWeb devices. The X-400 can communicate with all expansion modules and other ControlByWeb devices but offers instantaneous messaging between X-400 Series products. This means that the X-400 controller can monitor and control I/O on other X-400 Series products as if it was directly connected to the controller!

Parameter Name	Parameter Value
Options	I/O
Other characteristics	industrial modular Ethernet with programmable logic controller
