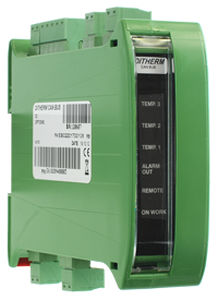

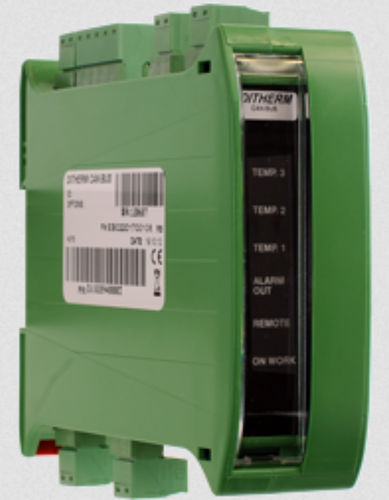

Device that allows to get up to 3 signals from thermocouples.
Input are insulated and it’s possible to contemporary connect different types of thermocouples.

This device is able to Connect three independent thermocouples, galvanically isolated each other and the power force for use with your supported SICES controllers.
Available in CANBUS and MODBUS RS485 version also.

-Input Voltage: 7-32 VDC
-Absorbed current: 200mA (@ 13V)
-Max consumption: 2,4W
-Input isolation: 1000V

Parameter Name	Parameter Value
Options	I/O
Other characteristics	CAN Bus
