DESCRIPTION

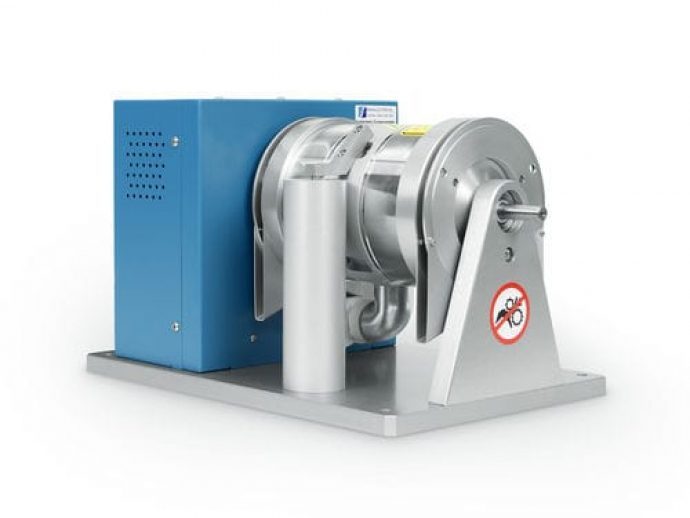

With Magtrol’s Engine Dynamometers, high performance motor testing is available to manufacturers and users of small engines. Magtrol’s Engine Dynamometers have been designed to address the severe, high vibration conditions inherent in internal combustion engine testing.

Magtrol’s Engine Dynamometers are highly accurate (±0.25% of full scale) and can be controlled either manually or via a PC based Controller. For a small engine test stand, Magtrol offers a full line of controllers, readouts and software.

As with all Magtrol Hysteresis Dynamometers, engine loading is provided by Magtrol’s Hysteresis Brake, which provides: torque independent of speed, including full load at 0 rpm; excellent repeatability; frictionless torque with no wearing parts (other than bearings); and long operating life with low maintenance.

APPLICATIONS
The Engine Dynamometers are ideally suited for emissions testing as set forth in CARB and EPA Clean Air Regulations. The Dynamometers will offer superior performance on the production line, at incoming inspection or in the R&D lab.

Parameter Name	Parameter Value
Type	hysteresis
Operation	electromagnetic, electromechanical
Other characteristics	high-torque adjustable robust modular air-cooled bi-directional dynamometer DC voltage eddy current for motors
Torque (Nm)	6.5 - 28
