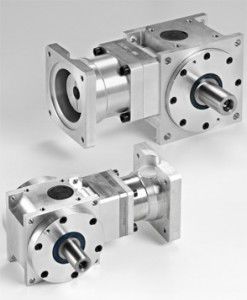

ZZ-Servoline KN has been designed as a bevel gear unit especially for high-dynamic servo drives in automation techniques. With the hypoid gearing, gear ratio’s of up to i = 15:1 can be covered in one stage. The design of the gear takes into account a weighting according to requirements, between pitting, fatigue fracture, the loading capacity on the root of the gear tooth and gear scuffing. The gearbox is suitable for operating in any optional mounting position. The output shaft can be in the form of a single or double-ended solid shaft, or as an extended hollow shaft with external taper lock assembly. The various combinations of shafts and flanges, provide facilities for all commonly used servo motors. The gearboxes are designed and sold as incomplete machinery according to the Directive 2006/42/EC of the European Parliament

Technical Highlights -
ZZ_Servoline - • 6 Sizes of gear units
• up to 1400 Nm
• up to 8000 rpm
• Hypoid bevel gear sets
• Minimum backlash
• High power density
• High gear rigidity
• Gear ratio's 3:1 to 15:1
• Amply dimensioned bearings
• Various flange combinations
• Maintenance-free lifetime lubrication

Parameter Name	Parameter Value
Type	hypoid
Torque (Nm)	200 - 500 50 - 100 100 - 200 1000 - 2000 500 - 1000 20 - 50
Performance	maintenance-free
Applications	shaft
Other characteristics	flange
Rotational speed (rpm)	8000 - 8000
