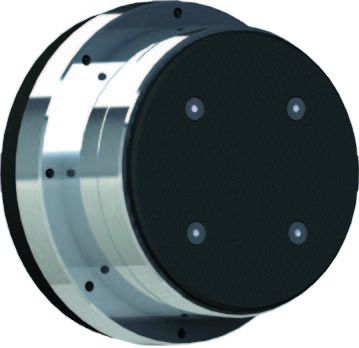

NSQ wheel motor gearbox are featuring in:
Motor Independent
By using different motor adapters it is possible to mount almost any motors. Direct assembly of the motor is also possible.

Direct Mounting
The mounting interface allows direct mounting of the gearbox to the vehicle. No additional adapters are required.

Reduction of installation space
The gearbox is almost completely enclosed by the wheel. The required installation space in the vehicle is therefore reduced to a minimum.

High load capacity
The preloaded, double-designed angular contact roller bearings with TPAD wheel gearboxes permit very high radial forces.

High efficiency and reliability
The proven gearbox type from Newstart value lines is characterized by a high efficiency. With the life time lubrication, it is also maintenance-free and extremely reliable, even in continuous operation.

Parameter Name	Parameter Value
Type	hypoid
Shaft orientation	coaxial
Torque (Nm)	50 - 100
Number of stages	single-stage
Performance	low-noise high-torque maintenance-free high load capacity high-rigidity
Applications	for automation for AGV
Other characteristics	modular custom for robotics high-quality
Rotational speed (rpm)	0 - 6000
