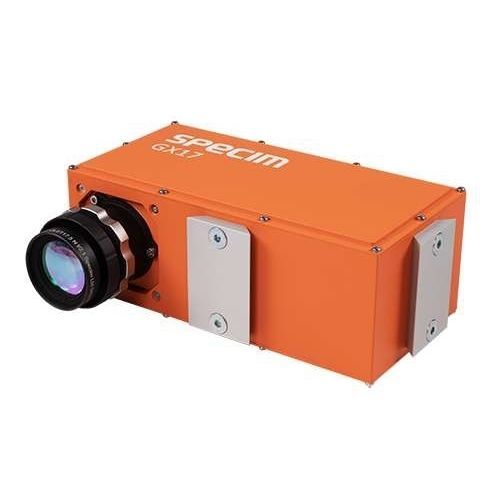

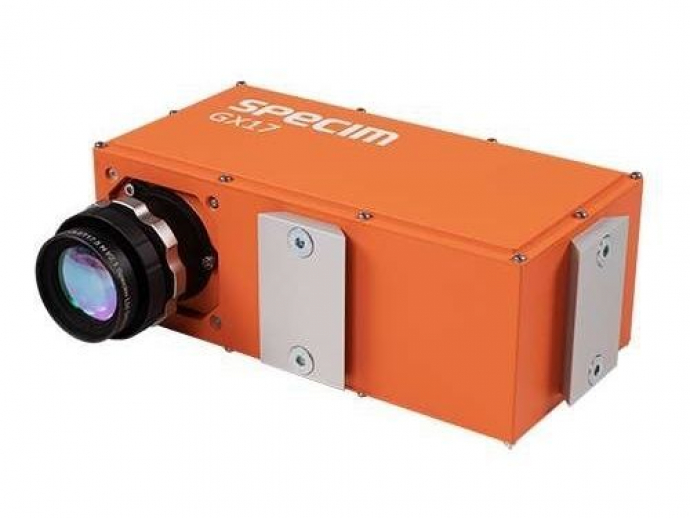

Specim GX17 is a fast-operation push-broom hyperspectral camera operating in the NIR spectral range (950 – 1700 nm). The GX17 identifies objects that are invisible to the human eye on conveyor belts and free fall systems moving at high speed. It is a powerful and accurate tool for inline sorting, inspection, and quality control and offers the best cost–performance ratio in high volumes.

HIGH-PERFORMING
High spatial resolution, image speed, light-throughput, and signal quality

ACCURATE
50% more pixels compared to conventional QVGA (320px) sensor-based HSI cameras

COST-EFFECTIVE
The best cost–performance ratio HSI NIR camera in high-volumes

SPECIM GX17 CAMERA IS IDEAL FOR:
FOOD SORTING
FOOD INSPECTION AND GRADING
WASTE SORTING
RECYCLING

• Spatial pixels 480
• Spatial resolution (FWHM) 1.5 pixel
• Spectral Range 950-1700 nm (varies depending on ambient temperature)
• Spectral resolution (FWHM) 8 nm (mean)
• Spectral sampling/pixel 4.7 nm
• Spectral bands 168
• Numerical aperture 1.7
• Optics magnification 0.80
• Effective pixel size 24.9 μm (slit plane)
• Effective slit width 42 μm (slit plane)
• Effective slit length 12.0 mm (slit plane)
• SNR @ max. signal 700
• Bit depth 16 (effective bits: 14)
• Maximum frame rate 800 fps (with 0.5 ms integration time)
• Binning 1x
• ROI Yes
• Pixel operability 99.5%
• Image corrections With SpecimCUBE (without camera-internal correction)
• Sensor material InGaAs
• Sensor cooling No
• Full well capacity 550 keRead-out noise 110 eMechanical shutter Shutterless
• Read-out modes ITR
• Lens mount Custom mount

Parameter Name	Parameter Value
Applications	industrial machine vision laboratory for the food industry for robotics for quality control
Technology	hyperspectral
Function	monitoring detection inspection image processing measuring
Spectrum	NIR, hyperspectral
Interface	Camera Link
