High-speed robots in the hygienic machine variant for handling and picking of small parts in a range of industries including food, pharmaceuticals and electronics.

Hygiene at a high level.

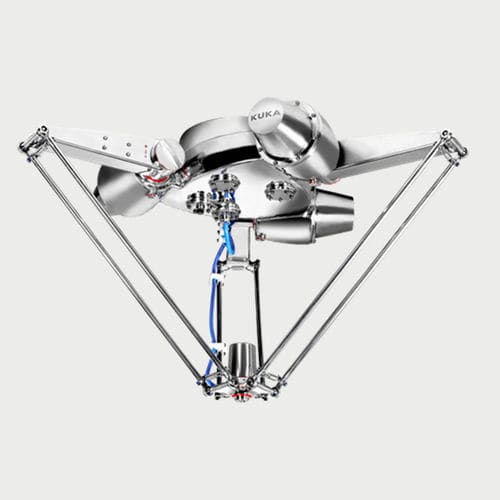

KUKA DELTA robots are designed for use in highly sensitive conditions.

Thanks to its stainless steel body, the KR DELTA is ideally equipped for hygienically sensitive areas, such as direct contact with food, medicines or electronic components.

The robot's corrosion-resistant stainless steel shell is designed according to German LFGB and US FDA food standards and also meets European CE certification, American UL certification and German TÜV safety function certification. The robot is protected against dust and moisture according to IP 67 protection class and can therefore be cleaned under high pressure and with alkaline or acidic cleaning agents.
KUKA DELTA robots are perfectly suited for pick-and-place tasks in the high-speed sector, including the food industry.
Hygienic

Made entirely of stainless steel
Easy to clean and to disinfect
High protection class IP 67 for the entire robot and IP 69K for axis 4
Temperature and corrosion resistance

Certified Safety

Safety of materials for the food sector certified according to international guidelines

- GER LFGB
- US FDA
High precision
Precision in gripping and placing objects as pick-and-place robots
Favorable operation

Low energy consumption
Low-maintenance

Parameter Name	Parameter Value
Type	delta
Number of axes	4-axis
Function	handling for assembly packaging pick-and-place palletizing
Mounting	ceiling-mount
Application domain	for the food industry for the electronics industry for the pharmaceutical industry for the cosmetics industry for small parts
Protection level	IP67
Other characteristics	high-speed waterproof hygienic
Payload (kg)	0 - 6
Reach (mm)	1200 - 1200
Repeatability (mm)	0.1 - 0.1
Weight (kg)	95
