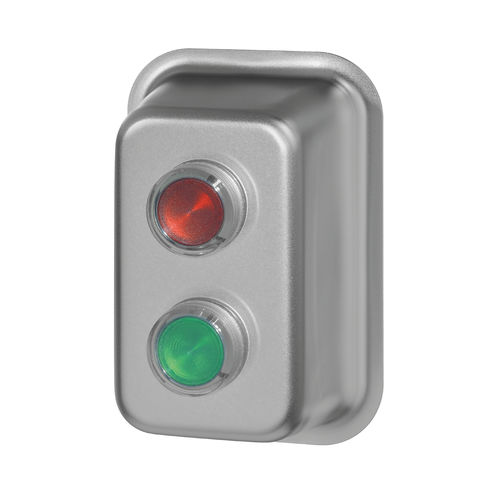

Switch housing TG5.HD
Hygienic design push button housing especially developed for robust and hygienic use in the food sector.

Material and surface:
Housing made of stainless steel 1.4404 (316L). Polymer seal with FDA approval for the food industry. Surface with Ra <0.8 μm.

Functional elements:

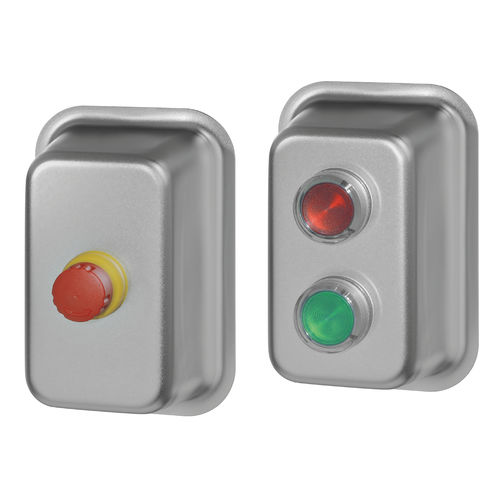

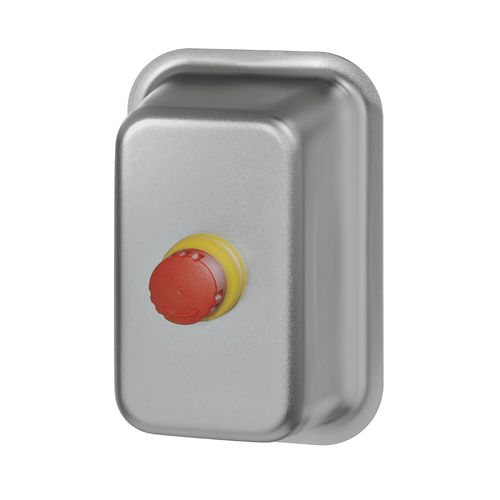

Depending on the type with push button or emergency stop.

Connection:
Lead 10 m out of the housing.

Certificates:
Housing with seal certified according to DGUV test. Switching elements and cable glands with approval for the food industry.

Scope of delivery:
Seal included in delivery.

Parameter Name	Parameter Value
Number of buttons	2-button, single-button
Protection class	IP65
Other characteristics	emergency stop start/stop metal wall-mounted stainless steel with buttons compact for motors with LED indicator hygienic rugged for laser marking machine
