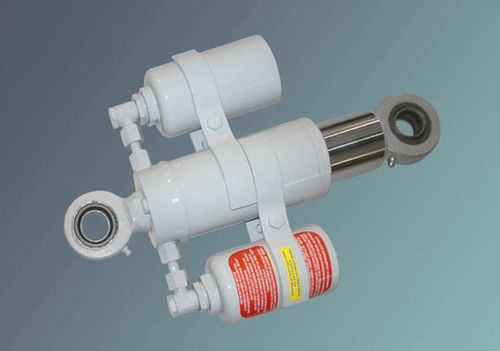

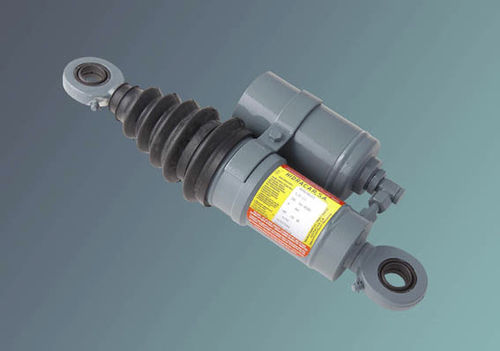

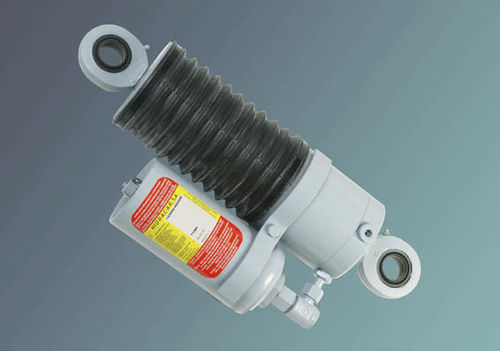

The coaxial hydropneumatic governor consists of a pneumatic power section and a hydraulic control section.

Caracteristics
This device is used to adjust and standardise speed; if installed, it makes it possible to solve any space problems in the machines.

The hydraulic circuit is closed, without any air-oil contact; the versions listed below are available:

- adjustment with rod out
- adjustment with rod in
- double adjustment

All versions can be provided with a speed control device:
- quick approach (SKIP N.A.)
- stop (STOP N.A.)

Parameter Name	Parameter Value
Type	hydro-pneumatic
Technology	piston
Configuration	double-acting
Material	aluminum, steel, brass
Applications	industrial for materials handling
Other characteristics	with mechanical interlock system hydro-pneumatic
Stroke (mm)	0 - 1000
Force (N)	110 - 1200
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Bore	50 mm, 63 mm (1.97 in)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
