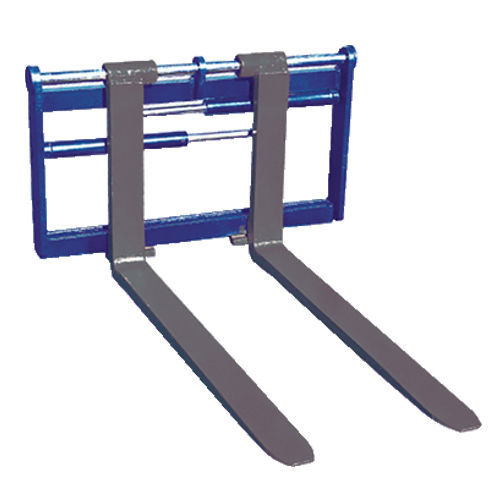

FORK POSITIONER WITH
single top axle guidance

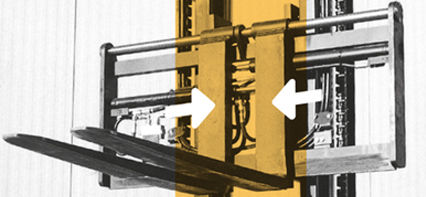

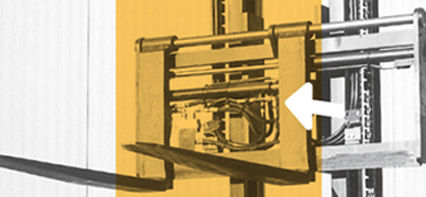

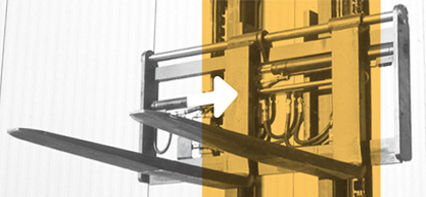

The fork tines can be hydraulically adjusted within the frame width with this fork positioner. The robust design with load bearing capacities from 1800 kg to 4000 kg is very compact and guarantees a long service life in normal use. With the standard integrated sideshift (see also page 3), two functions are combined in a single device.

ZVN SERIES FEATURES

1. Sturdy top axle guidance.
2. Bronze guide bushes (can be lubricated).
3. visibility.
4. Wear strips behind the backs of the forks.
5. Synchronisation via distribution valve.

Parameter Name	Parameter Value
Type	hydraulic
Orientation	linear
Number of axes	twin-shaft
Product applications	fork
Other characteristics	compact
Payload (kg)	1800 - 1800
