The build-up of the oil pressure within the clamping system occurs via the machine mechanism. The clamping area is pressurized to ensure a secure clamping of the component. The clamping surface expands in the elastic area up to 0.3% of the diameter. Proper pre-preparation of component is presumed.

Have we piqued your interest? Then we will design and develop nearly any clamping system to your requirements. Not the right thing for you? No problem. We also offer mechanical clamping systems!

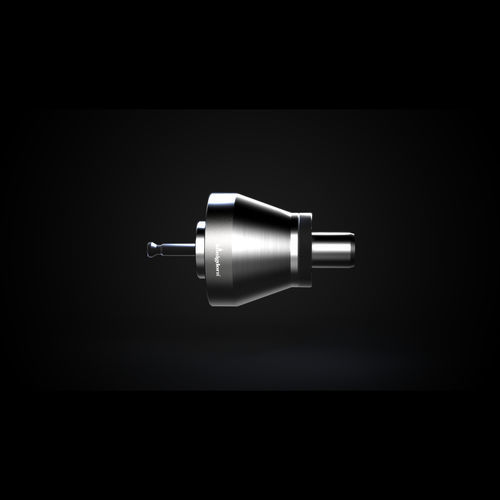

The actuation of this clamping system is done via the draw gear of the machine. The required interior pressure is created by the initiated tensile force using the integrated clamping piston. This causes the expansion of the clamping location, which centres and securely clamps the component.

Parameter Name	Parameter Value
Type	hydraulic nut
