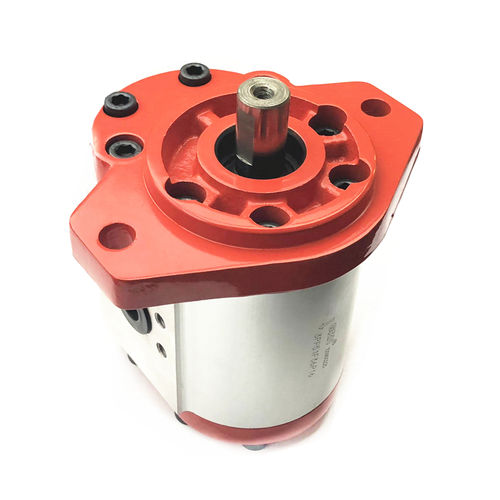

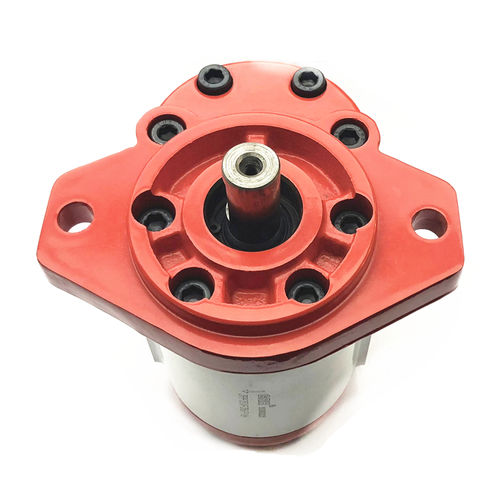

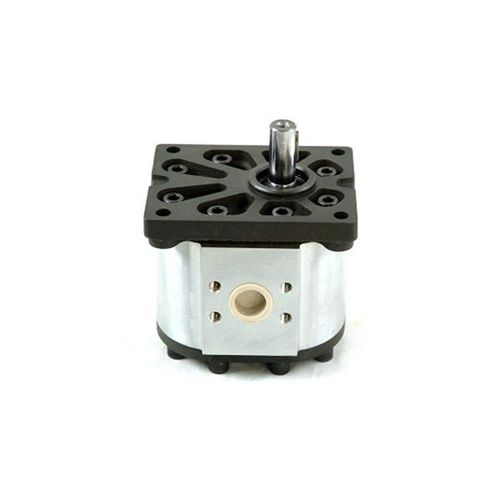

Hydraulic Gear Motors
Hydraulic gear motors convert hydraulic energy from a hydraulic pump into mechanical energy for rotation, thus, driving the load to work. This gear motor is also used as a hydraulic pump. It features an excellent starting performance, is not sensitive to oil contamination, features a wide speed range, a small inertia, excellent impact resistance, easy to maintain and reliable to operate. Precisely processing each part ensures a higher mechanical efficiency and strict process control guarantees a reliable product quality.

GRH offers 0.5cc-200cc hydraulic gear motors, available in aluminum and cast iron. According to the rotating direction, it can be divided into unidirectional gear motor and bidirectional gear motor, GRH can also customize the motors to meet specific application requirements.

Custom range
Speed range: 500 r/min - 3500n/min
Working pressure: < 250bar
Displacement: 0.16 cc/r-90cc/r
Torque range: 5-120Nm
Based on above specifications, GRH provides the following ports:
European connecting flange, shaft extension, thread and flange port.
SAE connecting flange, shaft extension, thread and flange port.
Front flange with front support
Special custom-made connecting flange, shaft extension, thread and flange port.
Hydraulic Gear Motor Models
Application
Cooling fan in bus and heavy-duty truck
High speed cutting machinery
Air blowing seed delivery device in an agricultural machinery

Parameter Name	Parameter Value
Motor type	hydraulic
Type	helical
Shaft orientation	coaxial
Torque (Nm)	5 - 10 50 - 100 100 - 200
Product applications	pump flange
Other characteristics	precision variable-speed cast iron
