About

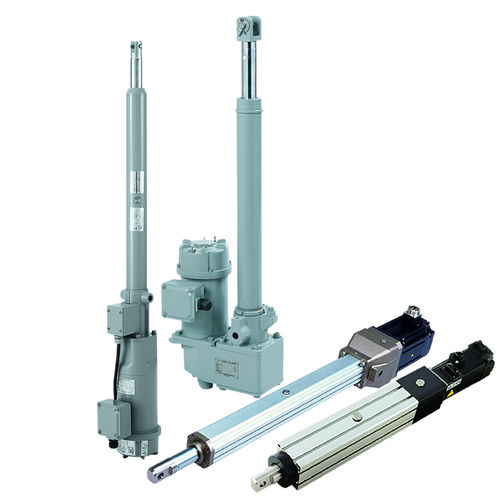

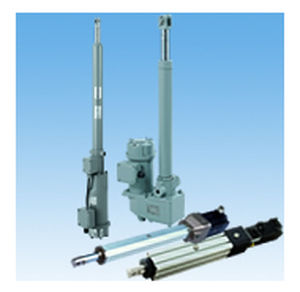

Worm series is the perfect power cylinder to replace hydraulic cylinders.

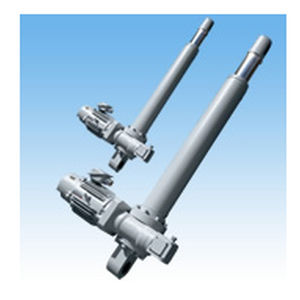

Worm Series LPWB provides large thrust by using a high precision worm gear and a highly efficient ball screw manufactured with technology based on nearly a century of manufacturing tradition.
Allowable Thrust ：49～490kN
Features
・Clean
There are no hydraulic pumps or pipes, so no worries about oil leakage from the connecting parts.
・Easy installation
No need for hydraulic pumps and pipes. Can be operated just by connecting a three-phase power source.
・Accurate control
Changing speeds and accurate positioning are possible by using an inverter.
・Low cost
Reduces costs by significantly reducing the number of parts.
・High load capacity
Can be used with large loads like jacks can thanks to its special steel alloy. (The maximum load capacity is 50t in the large thrust zone. )
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Technology |
worm gear
|
| Other characteristics |
|
| Stroke (mm) |
200 - 2000
|
| Force (N) |
49 - 294
|
| Motor power |
|
| Speed (mm/s) |
5 - 72
|
