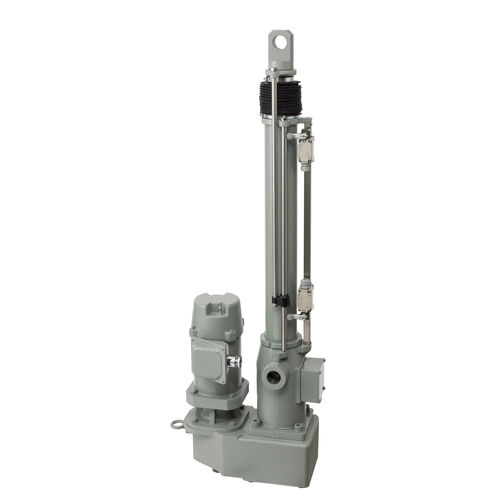

The smaller, lighter U Series Power Cylinder with more than 6 tons rated thrust.
Power cylinder that succeeds in providing a smaller, lighter unit with better cost performance while maintaining the same performance of the previous model (T series).

・Lightweight and compact

Thanks to newly developed special ball screws and bearings, we succeeded in reducing the total length by a max. of 10% and the mass 35% compared with the previous model (T series). The smaller size and lighter weight makes it easy to replace hydraulic cylinders.

・Complete line-up available

We added a new model with 50 tons rated thrust, which makes it easy to replace large hydraulic cylinders with a 250 mm inner diameter.

・Improved cost performance

In addition to achieving cost reductions compared to previous models thanks to smaller and lighter parts, the power cylinder is electrical so it has much better power savings than hydraulic types, greatly reducing power consumption.

[Comparison of power consumption with hydraulic cylinders ]

Annual power consumption comparison per unit (kWh/year )

Parameter Name	Parameter Value
Type	hydraulic electric
Technology	ball screw
Other characteristics	compact lightweight large
Stroke (mm)	500 - 1000
Force (N)	58839.9 - 313812.8
Torque (Nm)	124 - 124
Speed (mm/s)	6.5 - 52
