About

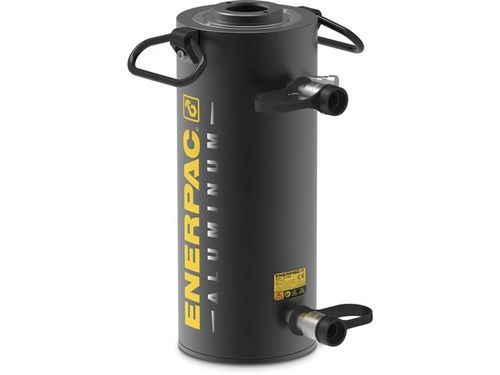

• Lighter and shorter collapsed height than equivalent RACH single-acting models
• Double-acting for rapid retraction, regardless of hose lengths or system losses
• Built-in safety valve prevents accidental overpressurization
• Hollow plunger design allows for both pull and push forces
• Composite bearings increase cylinder life and side load resistance
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Handles included on all models
• Floating center tube increases seal life
• Steel baseplate and saddle for protection against load-induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• CR400 coupler and dust cap included on all models
• All cylinders meet ASME B-30.1 standards
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
hydraulic
|
| Technology |
cylinder
|
| Configuration |
double-acting
|
| Material |
anodized aluminum
|
| Applications |
for lifting
|
| Other characteristics |
|
| Stroke (mm) |
50 - 150
|
| Force (N) |
187 - 1489
|
| Pressure |
700 bar (10,152.6 psi)
|
